New Product Service Information Manual 201 January 1972
PrevPrevious Page - New Product Service Information Manual 201 January 1972New Product Service Information Manual 201 January 1972Next Page - New Product Service Information Manual 201 January 1972Next

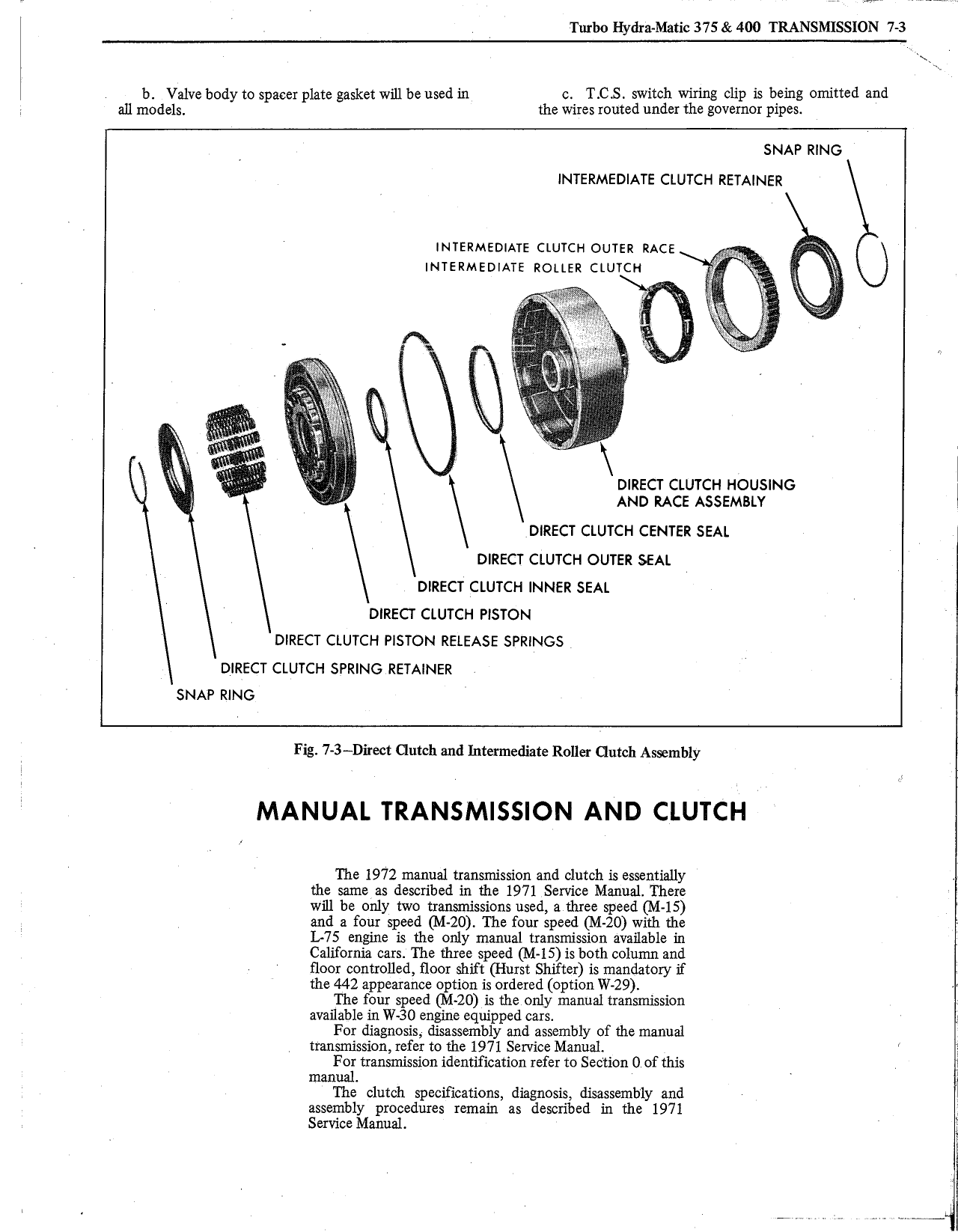

Turbo Hydra Matic 375 400 TRANSMISSION 7 3 b Valve body to spacer plate gasket will be used in c T CS switch wiring clip is being omitted and all models the wires routed under the govemor pipes V SNAP RING INTERMEDIATE CLUTCH RETAINER INTERMEDIATE CLUTCH OUTER RACE zn INTERMEDIATE Rouen cturcn 7 a V 4 E A 4 f a hs if Q Ex Y ajc will I T I l j DIRECT CLUTCH HOUSING A AND RACE ASSEMBLY DIRECT CLUTCH CENTER SEAL DIRECT CLUTCH OUTER SEAL DIRECT CLUTCH INNER SEAL DIRECT CLUTCH PISTON DIRECT CLUTCH PISTON RELEASE SPRINGS DIRECT CLUTCH SPRING RETAINER SNAP RING Fig 7 3 Direct Clutch and Intermediate Roller Gutclr Assembly MANUAL TRANSMISSION AND CLUTCH The 1972 manual transmission and clutch is essentially the same as described in the 1971 Service Manual There will be only two transmissions used a three speed M 15 and a four speed M 20 The four speed M 20 with the L 75 engine is the only manual transmission available in California cars The three speed M 15 is both column and floor controlled floor shift Hurst Shifter is mandatory if the 442 appearance option is ordered option W 29 The fom speed M 20 is the only manual transmission available in W 30 engine equipped cars For diagnosis disassembly and assembly of the manual transmission refer to the 1971 Service Manual For transmission identification refer to Section 0 of this l manual The clutch specifications diagnosis disassembly and I assembly procedures remain as described in the 1971 Service Manual
