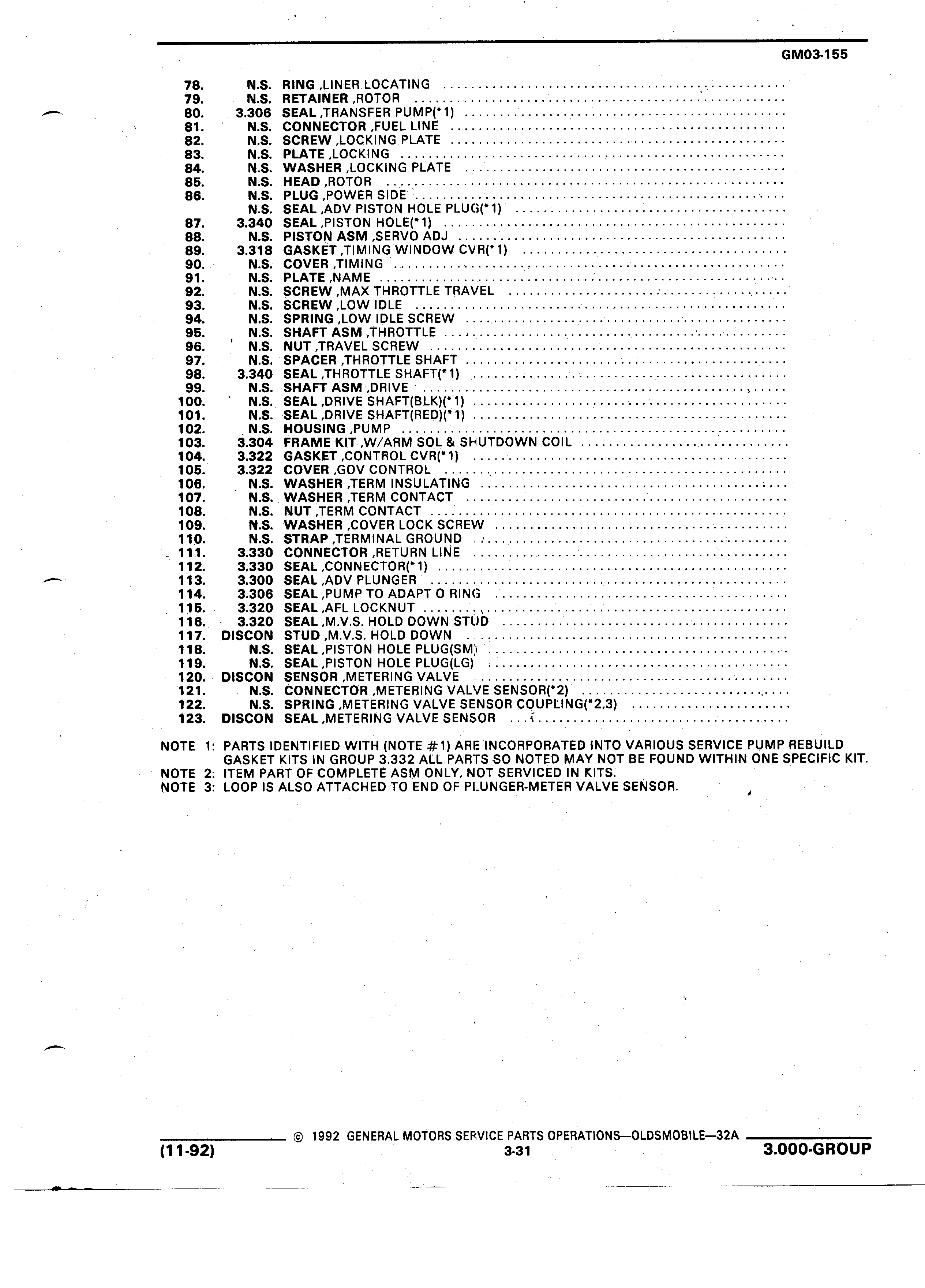

GM03 155 78 N S RING L NERILOCATING V 79 N S RETAINER ROTOR I 80 I 3 306 SEAL TRANSFER PUMP 1 I 81 N S CONNECTOR FUEL LINE 82 N S SCREW LOCKING PLATE 83 N S PLATE LOCKING V 84 N S WASHER LOCKING PLATE 85 N S HEAD ROTOR 86 N S PLUG POWER SIDE N S SEAL ADV PISTON HOLE PLUG 1 87 3 340 SEAL P STON HOLE 1 I 88 N S PISTON ASM SERVO ADJ 89 3 318 GASKET TIMING WINDOW CVR 1 90 N S COVER TIMING I 91 N S PLATE NAME 92 N S SCREW MAX TH ROTTLE TRAVEL 93 N S SCREW LOW IDLE 94 N S SPRING LOWIDLE SCREW I 95 N S SHAFT ASM THROTTLE 96 N S NUT TRAVEL SCREW 97 N S SPACER THROTTLE SHAFT 98 3 340 SEAL THROTTLE SHAFT 1 99 N S SHAFT ASM DR VE I 100 N S SEAL DR VE SHAFT BLK 1 101 N S SEAL DRIVE SHAFT RED 1 102 N S HOUSING PUMP 103 3 304 FRAME KIT W ARM SOL SHIUTDOWN COIL I 104 3 322 GASKET CONTROL CVR 1 105 3 322 COVER GOV CONTROL 106 N S WASHER TERM INSULATING 107 N S I WASHER TERM CONTACT 108 N S NUT TERM CONTACT I 109 N S WASHER COVER LOCK SCREW 110 N S STRAP TERMINAL GROUND 111 3 330 CONNECTOR RETURN LINE 112 3 330 SEAL CONNECTOR 1 113 3 300 SEAL ADV PLUNGER 114 3 306 SEAL PUMP TO ADAPT O RING 115 3 320 SEAL AFL LOCKNUT I 116 3 320 SEAL M V S HOLD DOWN STUD R 117 DISCON STUD M V S HOLD DOWN 118 N S SEAL P STON HOLE PLUG SM 119 N S SEAL P STON HOLE PLUGILG 120 DISCON SENSOR METERING VALVE I 121 N S CONNECTOR METERING VALVE SENSOR 2 Q I 122 N S SPRING METERING VALVE SENSOR COUPLING 2 3 123 DISCON SEAL METERING VALVE SENSOR I NOTE 1 PARTS IDENTIFIED WITH NOTE 1 ARE INCORPORATED INTO VARIOUS SERVICE PUMP REBUILD GASKET KITS IN GROUP 3 332 ALL PARTS SO NOTED MAY NOT BE FOUND WITHIN ONE SPECIFIC KIT NOTE 2 ITEM PART OF COMPLETE ASM ONLY NOT SERVICED IN KITS NOTE 3 LOOP IS ALSO ATTACHED TO END OF PLUNGER METER VALVE SENSOR l t 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS 0LDSMOBILE 32A 1 1 92 3 31 3 000 GROUP
