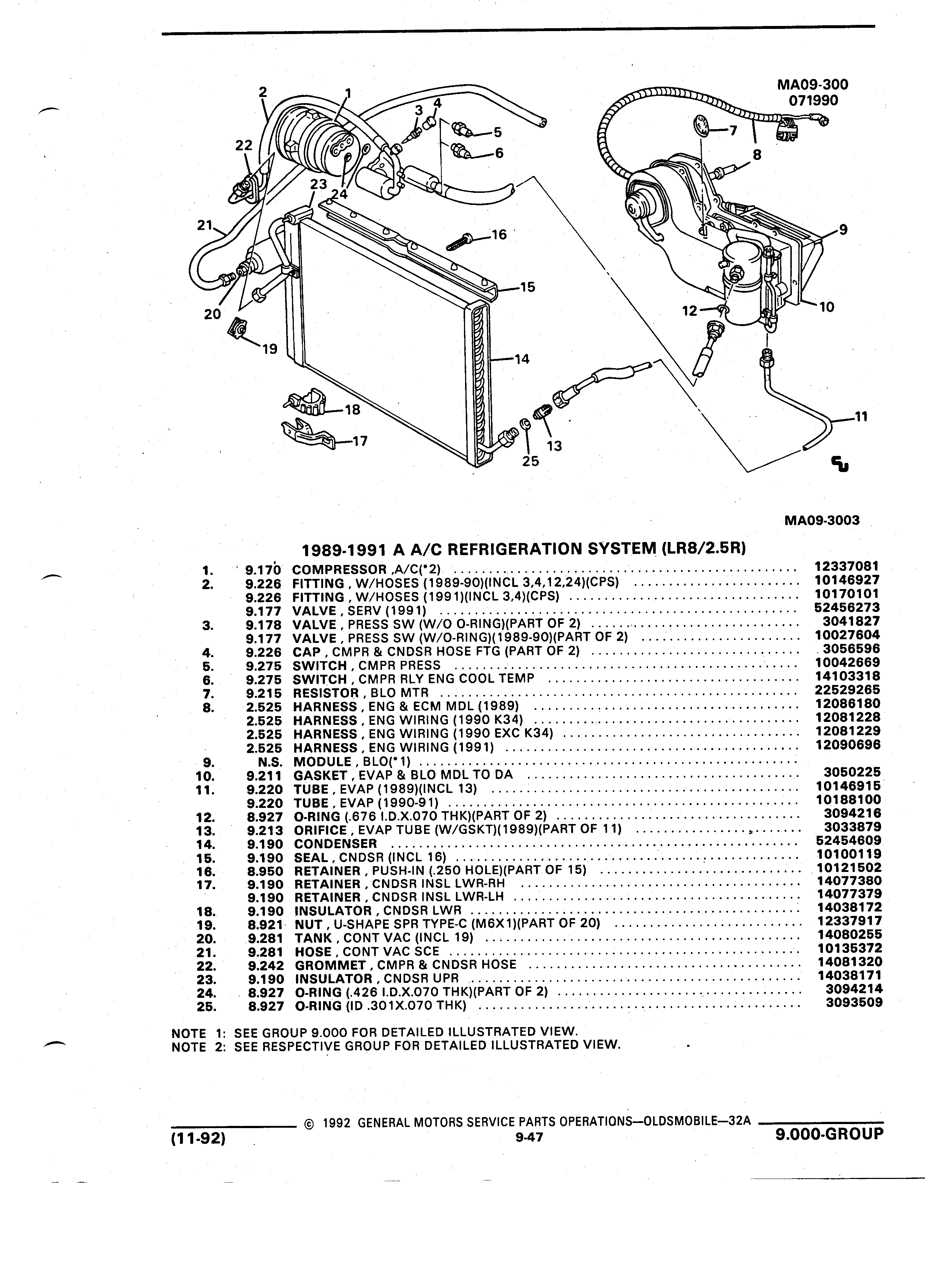

2 1 m MA09 300 rf I Filgunh 1 B X d 5 Q iF E 9 E L 7 22 Il gp 3 V 6 z 9 A 0 23 Q Q I yl M X N 4 wf X x 21 Q I 116 9 9 ji m Q 9s A 20 V 12 H 10 19 5 I 5 14 d 9 1 r I 8 2 f 11 I 25 5 V I MA09 3003 1989 1991 A A C REFRIGERATION SYSTEM LR8 2 5R A 1 9 170 COMPRESSOR A C 2 V 12337081 2 9 226 FITTING W HOSES 1989 90 INCL 3 4 12 24 CPS 10146927 9 226 FITTING W HOSES 1991 NCL 3 4 CPS 10170101 9 177 VALVE SERV 1991 52456273 3 9 178 VALVE PRESS SW W O O RING PART OF 2 3041827 9 177 VALVE PRESS SW W O RING 1989 90 PART OF 2 10027604 4 9 226 CAP CMPR CNDSR HOSE FTG PART OF 2 3056596 5 9 275 SWITCH CMPR PRESS 10042669 6 9 275 SWITCH CMPR RLY ENG COOL TEMP 14103318 7 9 215 RESISTOR BLO MTR 22529265 8 2 525 HARNESS ENG ECM MDL 1989 12086180 2 525 HARNESS ENG WIRING 1990 K34 12081228 2 525 HARNESS ENG WIRING 1990 EXC K34 12081229 2 525 HARNESS ENG WIRING 1991 12090696 9 N S MODULE BLO 1 10 9 211 GASKET EVAP BLO MDL TO DA 3050225 11 9 220 TUBE EVAP 1989 NCL 13 10146915 9 220 TUBE EVAP 1990 91 10188100 12 8 927 O RING 676 I D X 070 THK PART OF 2 3094216 13 9 213 ORIFICE EVAP TUBE W GSKT 1989 PART OF 11 3033879 14 9 190 CONDENSER 52454609 15 9 190 SEAL CNDSR INCL 16 I 10100119 16 8 950 RETAINER PUSH IN 250 HOLE PART OF 15 10121502 17 9 190 RETAINER CNDSR INSL LWR RH 14077380 9 190 RETAINER CNDSR INSL LWR LH 14077379 18 9 190 INSULATOR CNDSR LWR L 14038172 19 8 921 NUT U SHAPE SPR TYPE C M6X1 PART OF 20 12337917 20 9 281 TANK CONT VAC INCL 19 14080255 21 9 281 HOSE CONT VAC SCE 10135372 22 9 242 GROMMET CMPR CNDSR HOSE 14081320 23 9 190 INSULATOR CNDSR UPR 14038171 24 8 927 O RING 426 D X 070 THK PART OF 2 3094214 25 8 927 O RING ID 301X 070 THK A 3 093509 NOTE 1 SEE GROUP 9 000 FOR DETAILED ILLUSTRATED VIEW NOTE 2 SEE RESPECTIVE GROUP FOR DETAILED ILLUSTRATED VIEW L 1992 GENERAL MOTORS SERVICE PARTS 0PERAT 0NS OLDSMOB LE 32A 1 1 92 9 47 9 000 GROUP
