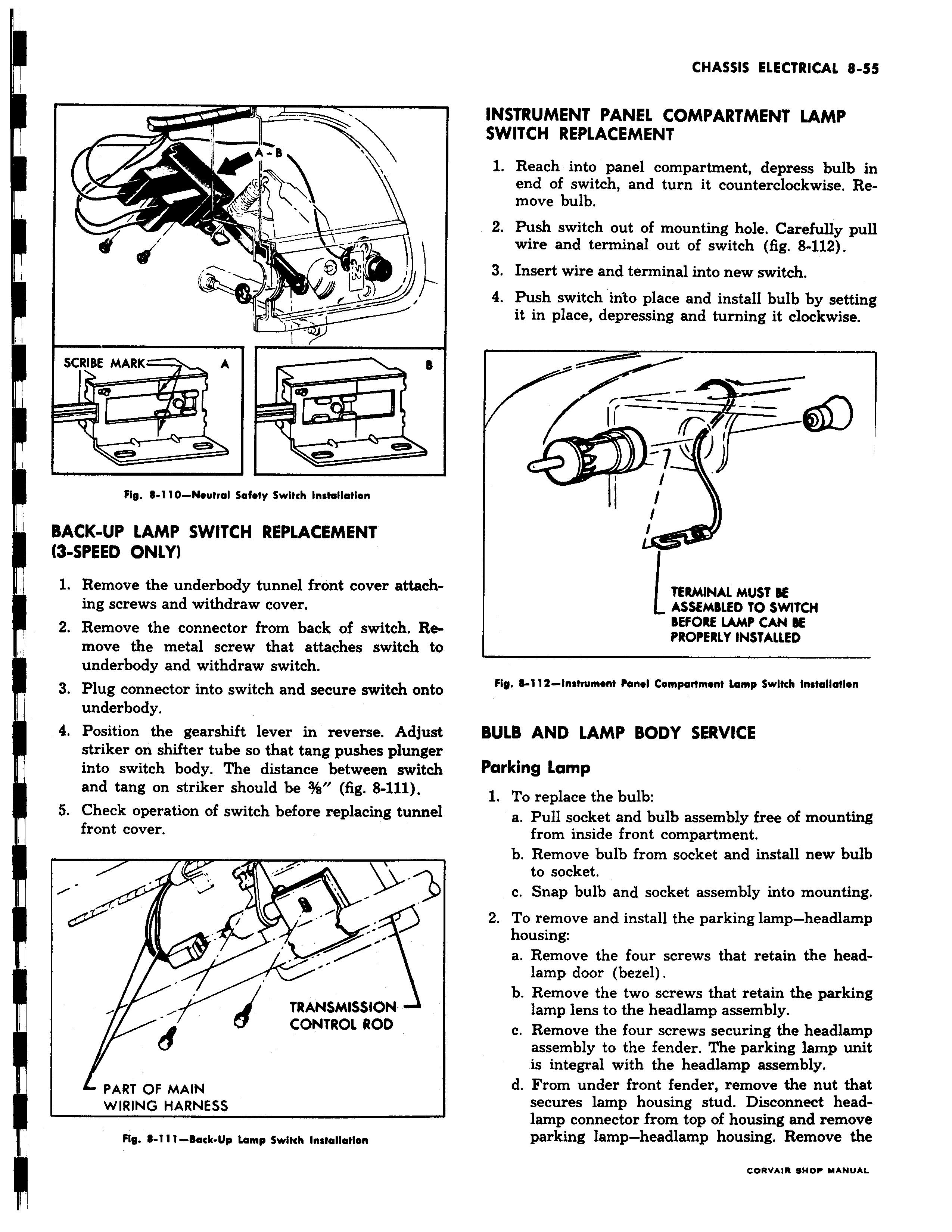

f A B I 1N I SCRIBE MARK A B Fig 8 11 O Noutral Safety Switch installation BACK UP LAMP SWITCH REPLACEMENT 3 SPEED ONLY 1 Remove the underbody tunnel front cover attaching screws and withdraw cover 2 Remove the connector from back of switch Re move the metal screw that attaches switch to underbody and withdraw switch 3 Plug connector into switch and secure switch onto underbody 4 Position the gearshift lever in reverse Adjust striker on shifter tube so that tang pushes plunger into switch body The distance between switch and tang on striker should be fig 8 111 5 Check operation of switch before replacing tunnel front cover i J v TRANSMISSION CONTROL ROD PART OF MAIN WIRING HARNESS Fig i l l 6oek Up Lamp Switch Installation w r w r r rrrm nWrW v JJ INSTRUMENT PANEL COMPARTMENT LAMP SWITCH REPLACEMENT 1 Reach into panel compartment depress bulb in end of switch and turn it counterclockwise Remove bulb 2 Push switch out of mounting hole Carefully pull wire and terminal out of switch fig 8 112 3 Insert wire and terminal into new switch 4 Push switch inlo place and install bulb by setting it in place depressing and turning it clockwise I TERMINAL MUST BE ASSEMBLED TO SWITCH BEFORE LAMP CAN BE PROPERLY INSTALLED Fig A 12 Instrument Panel Compartment Lamp Switch Installation BULB AND LAMP BODY SERVICE Parking Lamp 1 To replace the bulb a Pull socket and bulb assembly free of mounting from inside front compartment b Remove bulb from socket and install new bulb to socket c Snap bulb and socket assembly into mounting 2 To remove and install the parking lamp headlamp housing a Remove the four screws that retain the headlamp door bezel b Remove the two screws that retain the parking lamp lens to the headlamp assembly c Remove the four screws securing the headlamp assembly to the fender The parking lamp unit is integral with the headlamp assembly d From under front fender remove the nut that secures lamp housing stud Disconnect headlamp connector from top of housing and remove parking lamp headlamp housing Remove the
