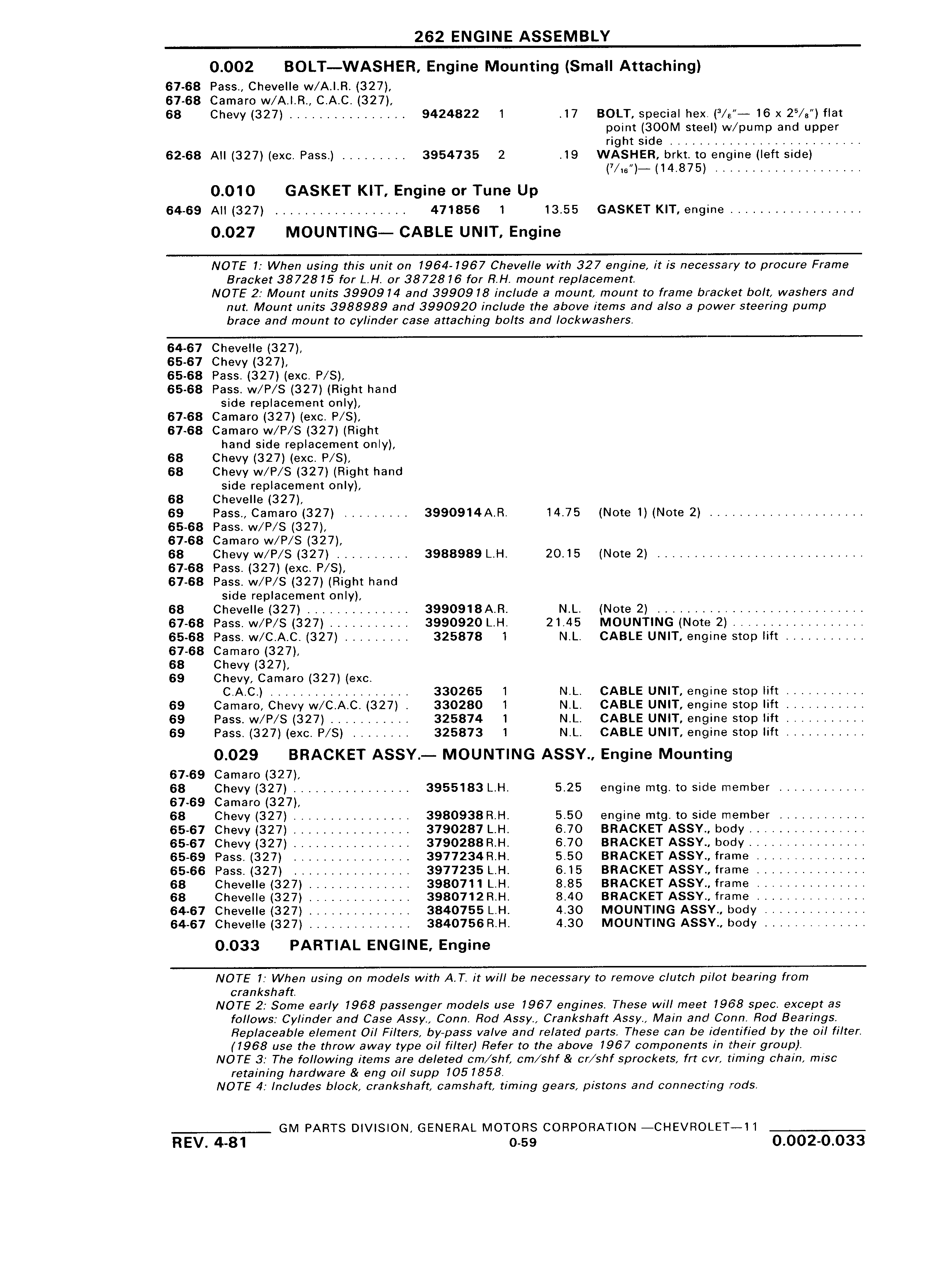

262 ENGINE ASSEMBLY 0 002 BOLT WASHER Engine Mounting Small Attaching 67 68 Pass Chevelle w A I R 327 67 68 Camaro w A l R C A C 32 7 68 Chevy 327 9424822 1 17 BOLT special hex E 16 x 25 S flat point 300M steel w pump and upper right side 62 68 All 327 exc Pass 3954735 2 19 WASHER brkt to engine left side 7 IS 14 875 0 010 GASKET KIT Engine or Tune Up 64 69 All 327 471856 1 13 55 GASKET KIT engine 0 027 MOUNTING CABLE UNIT Engine NOTE 1 When using this unit on 1964 1967 Chevelle with 327 engine it is necessary to procure Frame Bracket 3872815 for L H or 38728 76 for R H mount replacement NOTE 2 Mount units 3990974 and 3990918 include a mount mount to frame bracket bolt washers and nut Mount units 3988989 and 3990920 include the above items and also a power steering pump brace and mount to cylinder case attaching bolts and lockwashers 64 67 Chevelle 327 65 67 Chevy 327 65 68 Pass 327 exc P S 65 68 Pass w P S 327 Right hand side replacement only 67 68 Camaro 327 exc P S 67 68 Camaro w P S 327 Right hand side replacement only 68 Chevy 327 exc P S 68 Chevy w P S 327 Right hand side replacement on Y 68 Chevelle 327 69 Pass Camaro 327 3990914 A R 14 75 Note 1 Note 2 65 68 Pass w P S 327 67 68 Camaro w P S 327 68 Chevy w P S 327 3988989 L H 20 15 Note 2 67 68 Pass 327 exc P S 67 68 Pass w P S 327 Right hand side replacement only 68 Chevelle 327 3990918 A R N L Note 2 67 68 Pass w P S 327 3990920 L H 21 45 MOUNTING Note 2 65 68 Pass w C A C 327 325878 1 N L CABLE UNIT engine stop lift 67 68 Camaro 327 68 Chevy 327 69 Chevy Camaro 327 exc C A C 330265 1 N L CABLE UNIT engine stop lift 69 Camaro Chevy w C A C 327 330280 1 N L CABLE UNIT engine stop lift 69 Pass w P S 327 325874 1 N L CABLE UNIT engine stop lift 69 Pass 327 exc P S 325873 1 N L CABLE UNIT engine stop lift 0 029 BRACKET ASSY MOUNTING ASSY Engine Mounting 67 69 Camaro 327 68 Chevy 327 3955183 L H 5 25 engine mtg to side member 67 69 Camaro 327 68 Chevy 327 3980938 R H 5 50 engine mtg to side member 65 67 Chevy 327 3790287 L H 6 70 BRACKET ASSY body 65 67 Chevy 327 3790288 R H 6 70 BRACKET ASSY body 65 69 Pass 327 3977234 R H 5 50 BRACKET ASSY frame 65 66 Pass 327 3977235 L H 6 15 BRACKET ASSY frame 68 Chevelle 327 3980711 L H 8 85 BRACKET ASSY frame 68 Chevelle 327 3980712 R H 8 40 BRACKET ASSY frame 64 67 Chevelle 327 3840755 L H 4 30 MOUNTING ASSY body 64 67 Chevelle 327 3840756 R H 4 30 MOUNTING ASSY body 0 033 PARTIAL ENGINE Engine NOTE 1 When using on models with A T it will be necessary to remove clutch pilot bearing from crankshaft NOTE 2 Some early 1968 passenger models use 1967 engines These will meet 1968 spec except as follows Cylinder and Case Assy Conn Rod Assy Crankshaft Assy Main and Conn Rod Bearings Replaceable element Oil Filters by pass valve and related parts These can be identified by the oil filter 7968 use the throw away type oil filter Refer to the above 1967 components in their group NOTE 3 The following items are deleted cm shf cm shf cr shf sprockets frt cvr timing chain misc retaining hardware eng oil supp 1051858 NOTE 4 Includes block crankshaft camshaft timing gears pistons and connecting rods GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 11 REV 4 81 0 59 0 002 0 033
