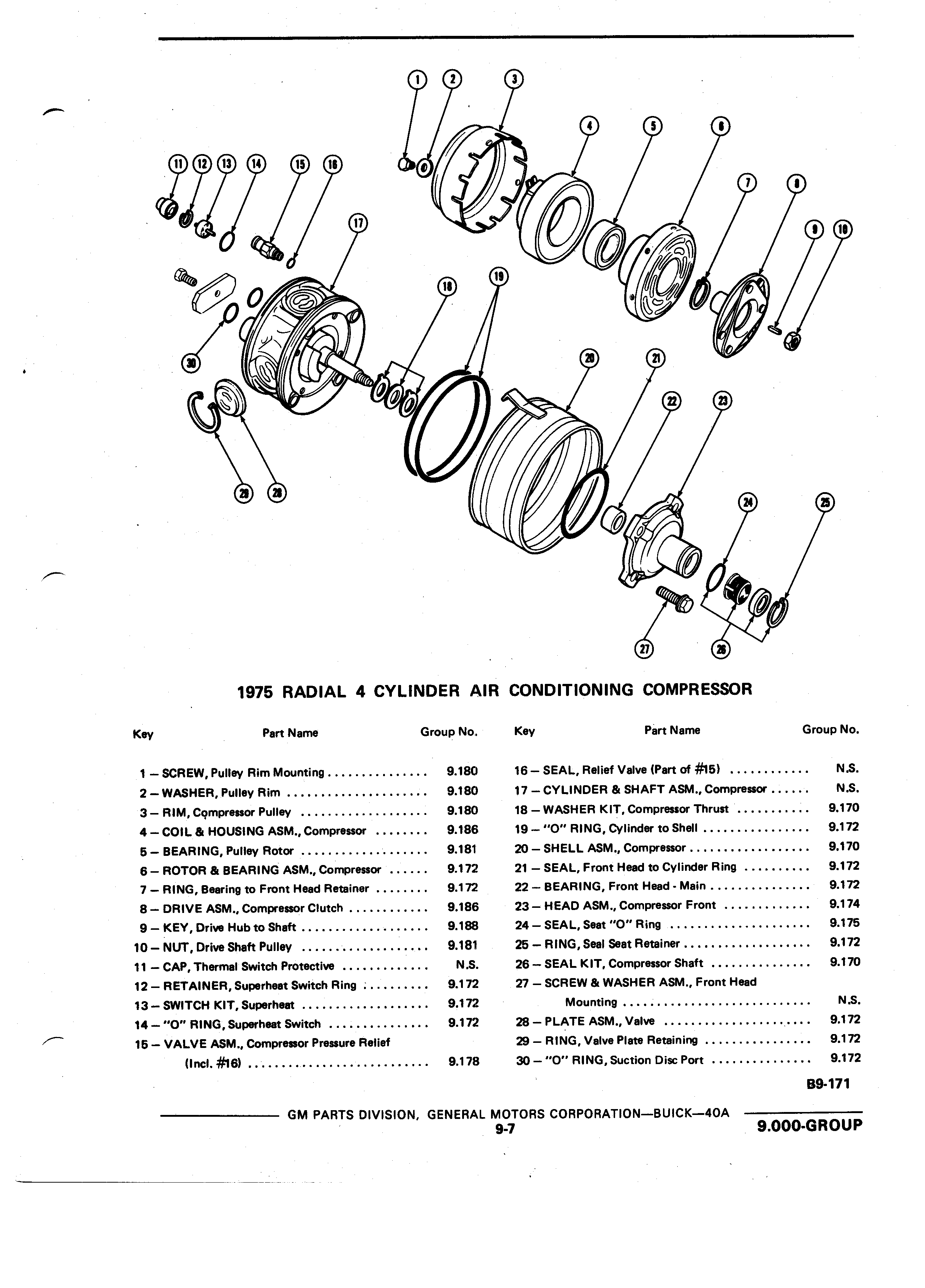

III 1 I III I IO E w 0 I I I I I I so lIV 6 2 y 1 l I 6 z I 2 I I 4 I iw W 1975 RADIAL 4 CYLINDER AIR CONDITIONING COMPRESSOR Key Part Name Group No Key Part Name Group No 1 SCREW Pulley Rim Mounting 9 180 16 SEAL Relief Valve Part of 15 N S 2 WASHER Pulley Rim 9 180 17 CYLINDER SHAFT ASM Compressor N S 3 RIM Compressor Pulley 9 180 18 WASHER KIT Compressor Thrust 9 170 4 COIL HOUSING ASM Compressor 9 186 19 O RING Cylinder to Shell 9 172 5 BEARING Pulley Rotor 9 181 20 SHELL ASM Compressor 9 170 6 ROTOR BEARING ASM Compressor 9 172 21 SEAL Front Head to Cylinder Ring 9 172 7 RING Bearing to Front Head Retainer 9 172 22 BEARING Front Head Main 9 172 8 DRIVE ASM Compressor Clutch 9 186 23 HEAD ASM Compressor Front 9 174 9 KEY Drive Hub to Shaft 9 188 24 SEAL Seat O Ring 9 175 10 NUT Drive Shaft Pulley 9 181 25 RING Seal Seat Retainer 9 172 11 CAP Thermal Switch Protective N S 26 SEAL KIT Compressor Shaft 9 170 12 RETAINER Superheat Switch Ring 9 172 27 SCREW WASHER ASM Front Head 13 SWITCH KIT Superheat 9 172 Mounting N S I4 O RING Superheat Switch 9 172 28 PLATE ASM Valve 9 172 15 VALVE ASM Compressor Pressure Relief 29 RING Valve Plate Retaining 9 172 Incl 16 9 178 30 O RING Suction Disc Port 9 172 A I as 171 GM mms oivision GENERAL morons oom onAr oN EuIo 4oA I s 1 9 000 GROuP
