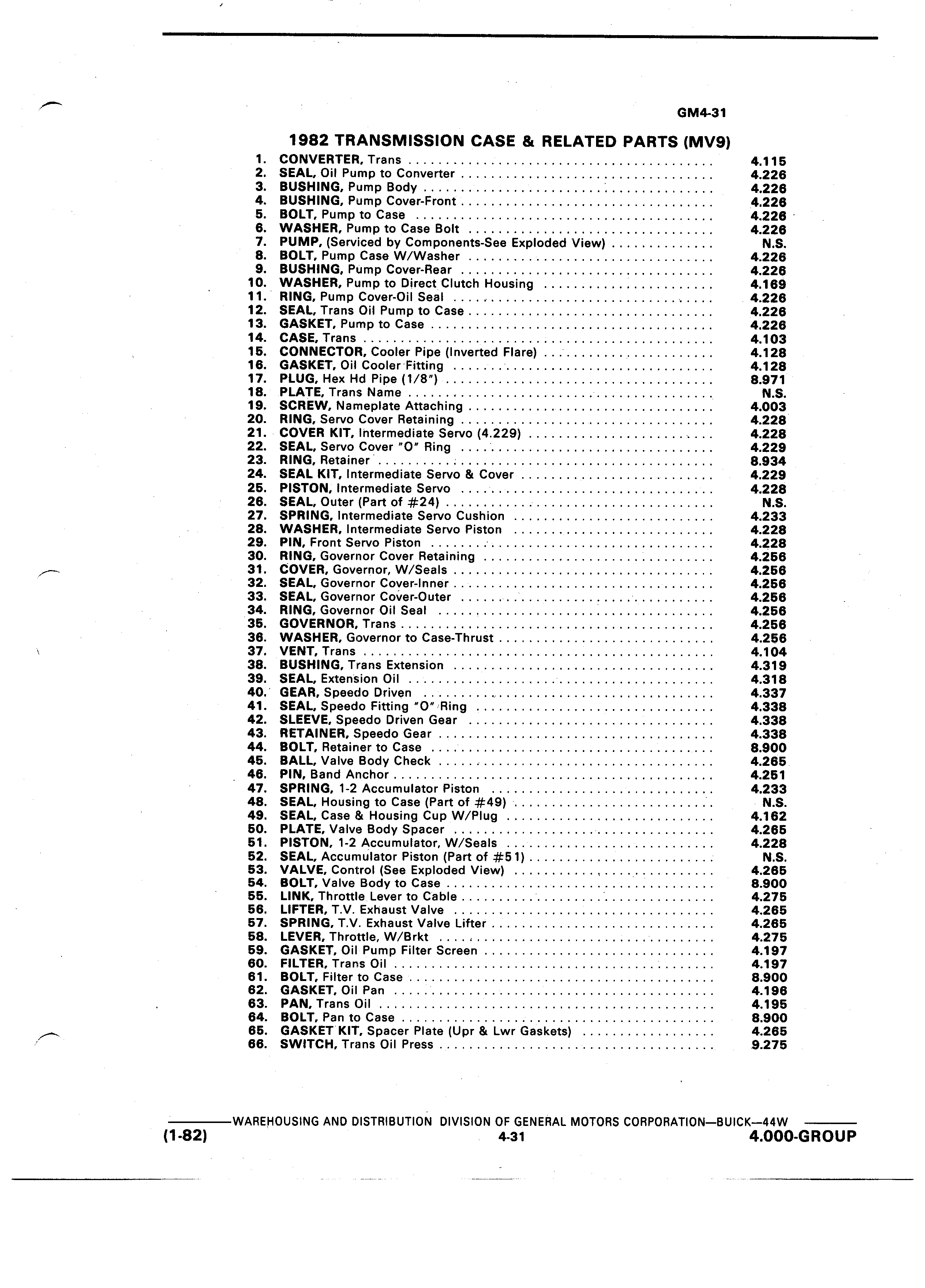

GM4 31 1982 TRANSMISSION CASE RELATED PARTS MV9 1 CONVERTER Trans 4 115 2 SEAL Oil Pump to Convener 4 226 3 BUSHING Pump Body L 4 226 4 BUSHING Pump Cover Front 4 226 5 BOLT Pump to Case 4 226 I 6 WASHER Pump to Case Bolt 4 226 7 PUMP Serviced by Components See Exploded View N S 8 BOLT Pump Case W Washer 4 226 9 BUSHING Pump Cover Rear 4 226 10 WASHER Pump to Direct Clutch Housing 4 169 11 RING Pump Cover Oil Seal 4 226 12 SEAL Trans Oil Pump to Case 4 226 I 13 GASKET Pump to Case 4 226 14 CASE Trans 4 103 15 CONNECTOR Cooler Pipe Inverted Flare 4 128 16 GASKET Oil CooIer Fitting I 4 128 17 PLUG Hex Hd Pipe 1 8 8 971 18 PLATE Trans Name N S r 19 SCREW Nameplate Attaching 4 003 20 RING Servo Cover Retaining 4 228 21 COVER KIT Intermediate Servo 4 229 4 228 22 SEAL Servo Cover O Ring 4 229 23 RING Retainer 8 934 24 SEAL KIT Intermediate Servo Cover 4 229 25 PISTON Intermediate Servo 4 228 26 SEAL Outer Part of 24 N S 27 SPRING Intermediate Servo Cushion 4 233 I 28 WASHER Intermediate Servo Piston 4 228 29 PIN Front Servo Piston I 4 228 30 RING Governor Cover Retaining 4 256 31 COVER Governor W Seals 4 256 32 SEAL Governor Cover Inner 4 256 33 SEAL Governor Cover Outer 4 258 34 RING Governor Oil Seal 4 256 35 GOVERNOR Trans 4 256 36 WASHER Governor to Case Thrust 4 256 37 VENT Trans 4 104 38 BUSHING Trans Extension 4 319 39 SEAL Extension Oil 4 318 40 GEAR Speedo Driven 4 337 41 SEAL Speedo Fitting O Ring 4 338 42 SLEEVE Speedo Driven Geer 4 338 43 RETAINER Speedo Gear 4 338 44 BOLT Retainer to Case 8 900 45 BALL Valve Body Check 4 265 4 46 PIN Band Anchor 4 251 47 SPRING 1 2 Accumulator Piston 4 233 48 SEAL Housing to Case Part of 49 N S 49 SEAL Case Housing Cup W Plug 4 162 50 PLATE Valve Body Spacer 4 265 51 PISTON 1 2 Accumulator W Seals 4 228 52 SEAL Accumulator Piston Part of 51 N S 53 VALVE Control See Exploded View 4 265 54 BOLT Valve Body to Case 8 900 55 LINK Throttle Lever to Cable 4 275 56 LIFTER T V Exhaust Valve 4 265 57 SPRING T V Exhaust Valve Lifter 4 265 58 LEVER Throttle W Brkt 4 275 A 59 GASKET Oil Pump Filter Screen 4 197 60 FILTER Trans Oil 4 197 61 BOLT Filter to Case 8 900 62 GASKET Oil Pan 4 196 63 PAN Trans Oil 4 195 64 BOLT Pan to Case 8 900 A 65 GASKETKIT Spacer Plate Upr Lwr Gaskets 4 265 66 SWITCH Trans Oil Press 9 275 WAREl IOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION BUICK 44W 1 82 4 31 4 000 GROUP
