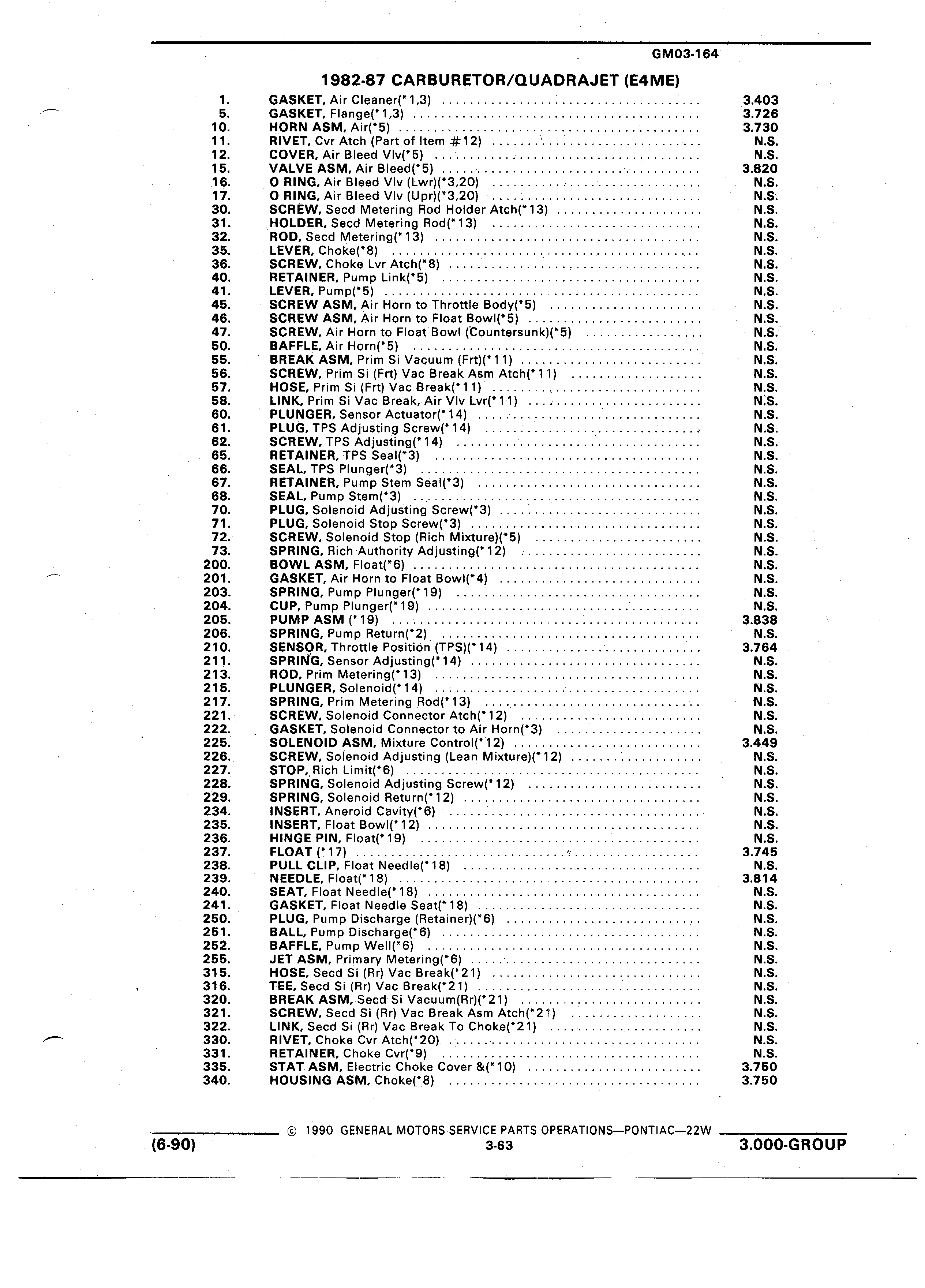

GM03 164 6 1982 87 CARBURETOR OUADRAJET E4ME 1 GASKET Air C eaner 1 3 3 403 5 GASKET F ange 1 3 3 726 10 HORN ASM Air 5 3 730 11 RIVET Cvr Atch Part of ltem 12 N S 12 COVER Air Bleed V v 5 N S 15 VALVE ASM Air Bleed 5 3 820 16 O RING Air Bleed Vlv Lwr 3 20 N S 17 O RING Air Blleed Vlv Upr 3 20 N S 30 SCREW Secd Metering Rod Holder Atch 13 N S 31 HOLDER Secd Metering Rod 13 N S 32 ROD Secd Me tering 13 N S 35 LEVER Choke 8 N S 36 SCREW Choke Lvr Atch 8 N S 40 RETAINER Pump Link 5 N S 41 LEVER Pump 5 N S 45 SCREW ASM Air Horn to Throttle Body 5 N S 46 SCREW ASM Air Horn to Float BowI 5 N S 47 SCREW Air Horn to Float Bowl Countersunk 5 N S 50 BAFFLE Air H0rn 5 N S 55 BREAK ASM Prim Si Vacuum Frt 11 N S 56 SCREW Prim Si Frt Vac Break Asm Atch 11 N S 57 HOSE Prim Si Frt Vac Break 11 N S 58 LINK Prim Si Vac Break Air Vlv Lvr 11 NIS 60 PLUNGER Sensor Actuator 14 N S 61 PLUG TPS Adljusting Screw 14 N S 62 SCREW TPS Adjusting 14 N S 65 RETAINER TPS Seal 3 N S 66 SEAL TPS P unger 3 N S 67 RETAINER Pump Stem Seal 3 N S 68 SEAL Pump Stem 3 N S 70 PLUG Solenoid Adjusting Screw 3 N S 71 PLUG Solenoid Stop Screw 3 N S 72 SCREW Solenoid Stop Rich Mixture 5 N S I 73 SPRING Rich Authority Adjusting 12 N S 200 BOWL ASM F oat 6 N S 201 GASKET Air I lorn to Float Bowl 4 N S 203 SPRING Pump P unger 19 N S i 204 CUP Pump Pliunger 19 N S 205 PUMP ASM 19 3 838 206 SPRING Pump Return 2 N S 210 SENSOR Throttle Position TPS 14 3 764 211 SPRING Sensor Adjusting 14 N S 213 ROD Prim Metering 13 N S 215 PLUNGER SoIenoid 14 N S 217 SPRING Prim Metering Rod 13 N S 221 SCREW Solenoid Connector Atch 12 N S 222 GASKET Solenoid Connector to Air Horn 3 N S 225 SOLENOID ASM Mixture ControI 12 3 449 226 SCREW Solenoid Adjusting Lean Mixture 12 N S 227 STOP Rich Limit 6 6 N S 228 SPRING Solenoid Adjusting Screw 12 N S 229 SPRING Solenoid Return 12 N S 234 INSERT Aneroid Cavity 6 N S 235 INSERT Float BowI 12 N S 236 HINGE PIN Float 19 N S 237 FLOAT 17 rz 3 745 I 238 PULL CLIP Float NeedIe 18 N S 239 NEEDLE FIoa1 18 3 814 240 SEAT Float NeedIe 18 N S 241 GASKET Float Needle Seat 18 N S 250 PLUG Pump Discharge Retainer 6 N S 251 BALL Pump D ischarge 6 N S 252 BAFFLE Pump We 6 N S 255 JET ASM Primary Metering 6 r N S 315 HOSE Secd Si Rr Vac Break 21 N S 316 TEE Secd Si lRr Vac Break 21 N S 320 BREAK ASM Secd Si Vacuum Rr 21 N S 321 SCREW Secd Si Rr Vac Break Asm Atch 2 l N S 322 LINK Secd Si Rr Vac Break To Choke 21 N S f 330 RIVET Choke Cvr Atch 20 N S 331 RETAINER Choke Cvr 9 N S 335 STAT ASM Electric Choke Cover 10 3 750 340 HOUSING ASlM Choke 8 3 750 1990 GENERAL MOTORS SERVICE PARTS OPERAT 0NS PONT AC 22W 6 90 s as 3 000 GROUP
