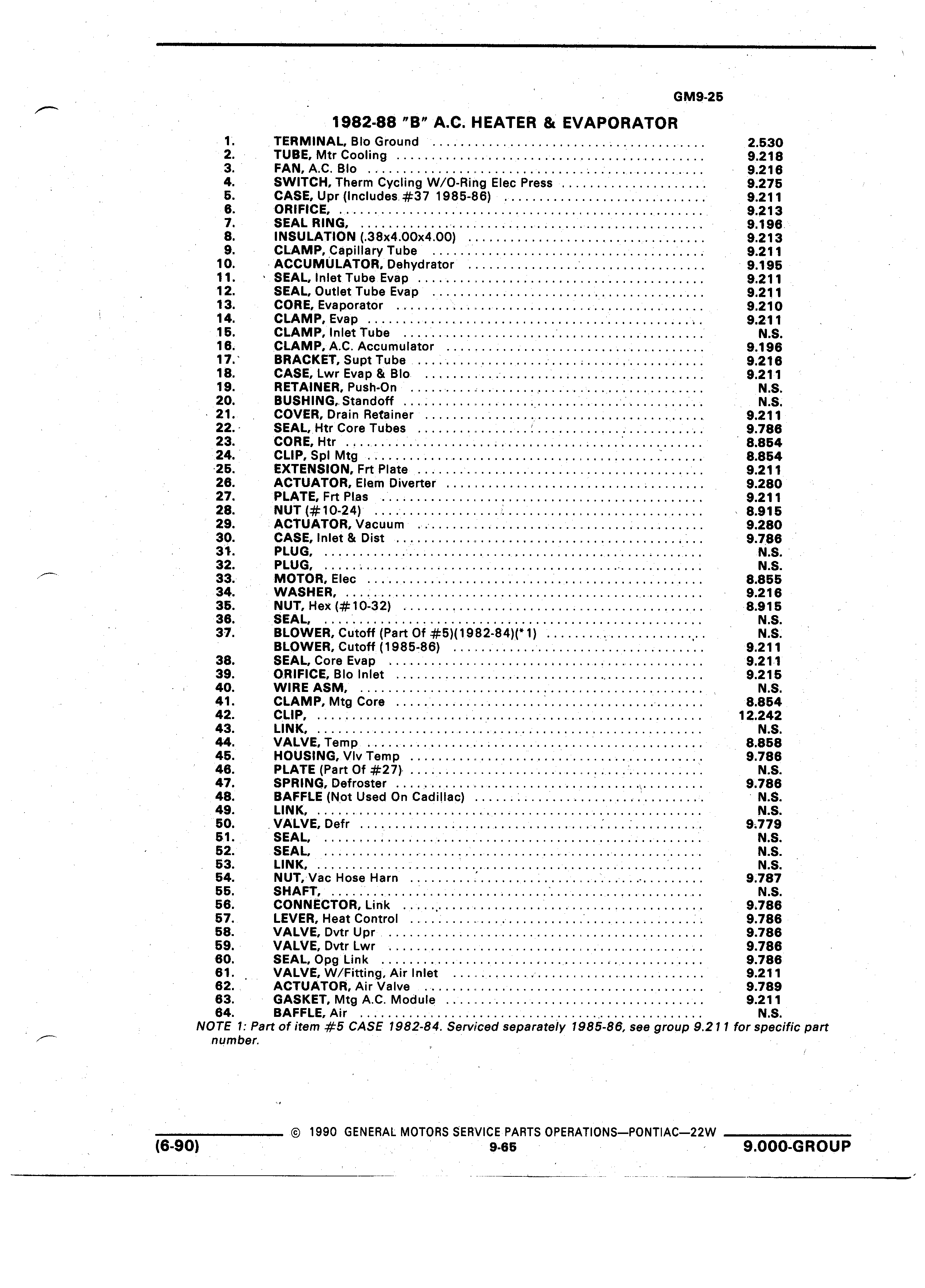

I GM9 25 1982 88 B A C HEATER EVAPORATOR 1 TERMINAL Blo Ground 2 5 30 2 TUBE Mtr Cooling 9 218 3 FAN A C Blo 9 216 4 SWITCH Therm Cycling W O Ring Elec Press 9 275 5 CASE Upr IncIudes 37 1985 86 9 211 6 ORIFICE 9 213 7 SEAL RING V 9 196 8 INSULATION 38x4 00x4 00 9 213 I 9 CLAMP Capillary Tube 9 211 10 ACCUMULATOR Dehydrator 9 195 11 SEAL Inlet Tube Evap 9 211 12 SEAL Outlet Tube Evap 9 211 13 CORE Evaporator 9 210 I 14 CLAMP Evap 9 211 15 CLAMP Inlet Tube I N S I 16 CLAMP A C Accumulator 9 196 17 BRACKET Supt Tube 9 216 I 18 CASE Lwr Evap Blo 9 211 I 19 RETAINER Push On 1 N S I 20 BUSH NG Standoff V N S 21 COVER Drain Retainer I 9 211 22 SEAL Htr Core Tubes L 9 786 23 CORE Htr Q l 8 854 24 I CLIP Spl Mtg 8 854 I 25 EXTENSION Frt Plate 9 211 26 ACTUATOR Elem Diverter 9 280 I V 27 PLATE Frt Plas 9 211 i 28 NUT 10 24 I i 8 915 29 ACTUATOR Vacuum 9 280 30 CASE Inlet Dist 9 786 I 31 PLUG N S 32 PLUG N S I 33 MOTOR Elec 8 855 34 WASHER 9 216 35 NUT Hex 10 32 8 915 1 36 SEAL I N S I 37 BLOWER Cutoff Part Of 5 1982 84 1 N S BLOWER Cutoff 1985 86 9 211 38 SEAL Core Evap 9 21 1 39 ORIFICE Blo Inlet 9 215 40 WIRE ASM N S I 41 CLAMP Mtg Core 8 854 42 CLIP 12 242 i 43 LINK N S I 44 VALVE Temp 8 858 45 HOUSING Vlv Temp 9 786 I 46 PLATE Part Of 27 I N S V 47 SPRING Defroster 9 786 48 BAFFLE Not Used On Cadillac L N S 49 LINK N S 50 VALVE Defr 9 779 51 SEAL N S 52 SEAL N S e sa LINK 9 I I N s I 54 NUT Vac Hose Harn 7 9 787 55 SHAFT I I N S 56 CONNECTOR Link I 9 786 57 LEVER Heat Control 4 I 9 786 58 VALVE Dvtr Upr 9 786 59 VALVE Dvtr Lwr 9 786 60 SEAL Opg Link 9 786 61 VALVE W Fitting Air Inlet I 9 21 1 62 ACTUATOR Air Valve 9 789 63 GASKET Mtg A C Module 9 21 1 64 BAFFLE Air N S I NOTE 1 Part of item 5 CASE 1982 84 Serviced separately 1985 86 see group 9 21 1 for specific part number F 1990 GENERAL MOTORS SERVICE PARTS 0PERATIONS PONT AC 22W 6 90 9 es A 9 000 GROUP
