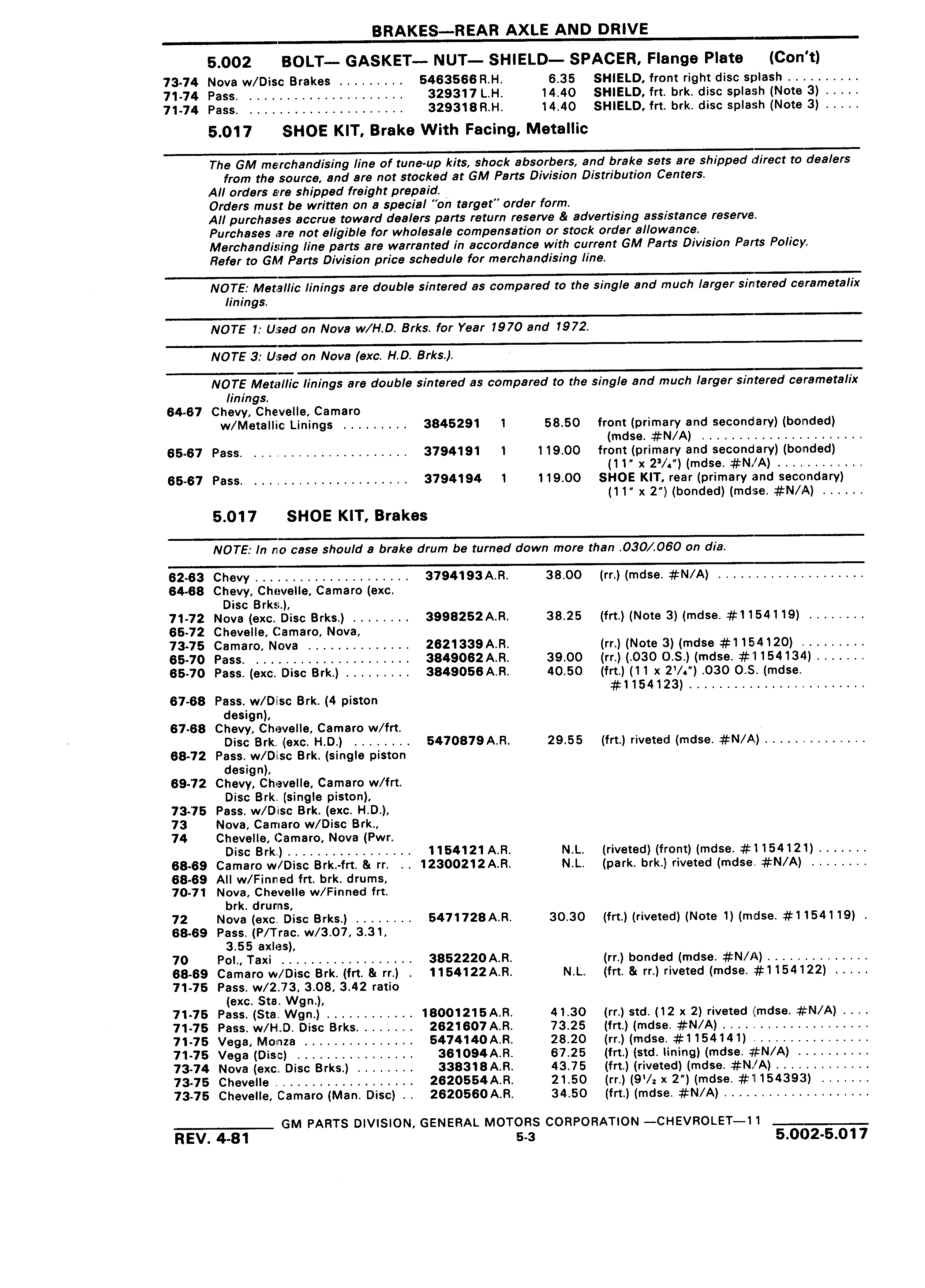

BRAKES REAR AXLE AND DRIVE 5 002 BOLT GASKET NUT SHIELD SPACER Flange Plate Con t 73 74 Nova w Disc Brakes 5463566 R H 6 35 SHIELD front right disc splash 71 74 Pass 329317 L H 14 40 SHIELD frt brk disc splash Note 3 71 74 Pass 329318 R H 14 40 SHIELD frt brk disc splash Note 3 5 017 SHOE KIT Brake With Facing Metallic The GM merchandising line of tune up kits shock absorbers and brake sets are shipped direct to dealers from the source and are not stocked at GM Parts Division Distribution Centers All orders are shipped freight prepaid Orders must be written on a special on target order form All purchases accrue toward dealers parts return reserve advertising assistance reserve Purchases are not eligible for wholesale compensation or stock order allowance Merchandising line parts are warranted in accordance with current GM Parts Division Parts Policy Refer to GM Parts Division price schedule for merchandising line NOTE Metallic linings are double sintered as compared to the single and much larger sintered cerametalix linings NOTE 1 Used on Nova w H D Brks for Year 1970 and 1972 NOTE 3 Used on Nova exc H D Brks I NOTE Metallic linings are double sintered as compared to the single and much larger sintered cerametalix linings 64 67 Chevy Chevelle Camaro w Metallic Linings 3845291 1 58 50 front primary and secondary bonded mdse N A 65 67 Pass 3794191 1 1 19 00 front primary and secondary boinded 11 x 2 mdse N A 65 67 Pass 3794194 1 119 00 SHOE KIT rear primary and secondary 11 x 2 bonded mdse N A 5 017 SHOE KIT Brakes NOTE In no case should a brake drum be turned down more than 030 060 on dia 62 83 Chevy 3794193 A R 38 00 rr mdse N A 64 68 Chevy Chevelle Camaro exc Disc Brks 71 72 Nova exc Disc Brks 3998252 A R 38 25 frt Note 3 mdse 1154119 66 72 Chevelle Camaro Nova 73 75 Camaro Nova 2621339 A R rr Note 3 mdse 1154120 65 70 Pass 3849062 A R 39 00 rr 030 0 S mdse 1154134 65 70 Pass exc Disc Brk 3849056 A R 40 50 frt 11 x 2 030 0 S mdse 1 154123 67 68 Pass w Disc Brk 4 piston design 67 68 Chevy Chevelle Camaro w frt Disc Brk exc H D 5470879 A R 29 55 frt riveted mdse N A 68 72 Pass w Disc Brk single piston design 69 72 Chevy Chevelle Camaro w frt Disc Brk single piston 73 75 Pass w Disc Brk exc H D 73 Nova Camaro w Disc Brk 74 Chevelle Camaro Nova Pwr Disc Brk 1154121 A R N L riveted front mdse 1154121 68 69 Camaro w Disc Brk frt rr 12300212 A R N L park brk riveted mdse N A 68 69 All w Finned frt brk drums 70 71 Nova Chevelle w Finned frt brk drums 72 Nova exc Disc Brks 5471728 A R 30 30 frt riveted Note 1 mdse 1154119 68 69 Pass P Trac w 3 07 3 31 3 55 axles 70 Pol Taxi 3852220 A R rr bonded mdse N A 68 69 Camaro w Disc Brk frt rr 1154122 A R N L frt rr riveted mdse 1154122 71 75 Pass w 2 73 3 08 3 42 ratio exc Sta Wgn 71 75 Pass Sta Wgn 18001215 A R 41 30 rr std 12 x 2 riveted mdse N A 71 75 Pass w H D Disc Brks 2621607 A R 73 25 frt mdse N A 71 75 Vega Monza 5474140 A R 28 20 rr mdse 1154141 71 75 Vega Disc 361094 A R 67 25 frt std lining mdse N A 73 74 Nova exc Disc Brks 338318 A R 43 75 frt riveted mdse N A 73 75 Chevelle 2620554 A R 21 50 rr 9 1 x 2 mdse 1154393 73 75 Chevelle Camaro Man Disc 2620560 A R 34 50 frt mdse N A GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 11 REV 4 81 5 s 5 002 5 017
