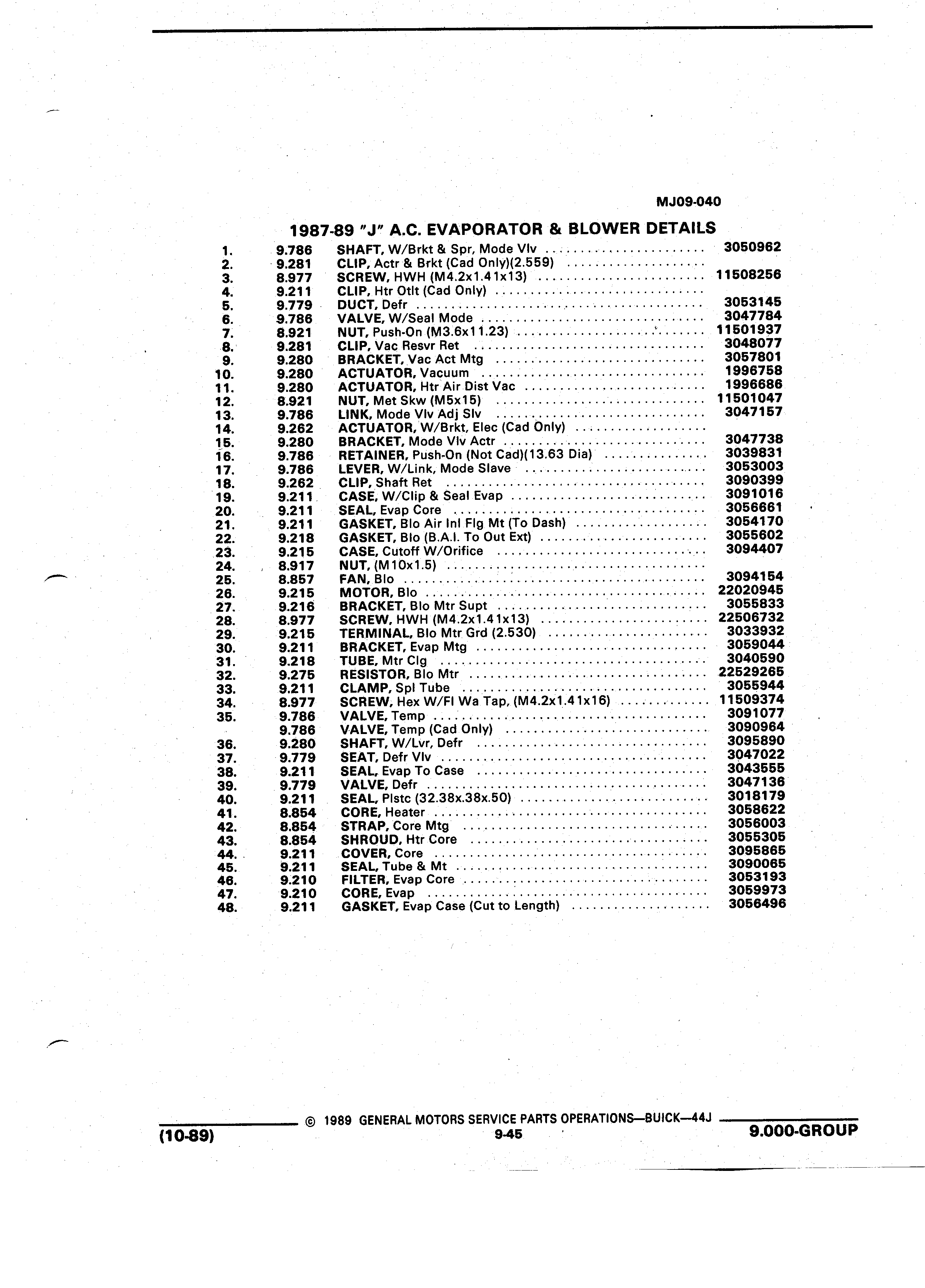

MJ09 040 1987 89 J A C EVAPORATOR BLOWER DETAILS 1 9 786 SHAFT W Brkt Spr Mode Vlv 3050962 2 9 281 CLIP Actr Brkt Cad OnIy 2 559 3 8 977 SCREW HWH M4 2x1 41x13 11508256 4 9 211 CLIP Htr Otlt Cad Only 5 9 779 DUCT Defr 3053145 i 6 9 786 VALVE W Seal Mode 3047784 7 8 921 NUT Push On M3 6x11 23 11501937 8 9 281 CLIP Vac Flesvr Ret 3048077 I 9 9 280 BRACKET Vac Act Mtg 3057801 10 9 280 ACTUATOR Vacuum 1996758 y 1 1 9 280 ACTUATOR Htr Air Dist Vac 1996686 12 8 921 NUT Met Skw M5x15 11501047 I 13 9 786 LINK Mode Vlv Adj Slv 3047157 14 9 262 ACTUATOR W Brkt Elec Cad Only 15 9 280 BRACKET Mode Vlv Actr 3047738 16 9 786 RETAINER Push On Not Cad 13 63 Dia 3039831 17 9 786 LEVER W Link Mode Slave 3053003 18 9 262 CLIP Shaft Ret 3090399 19 9 211 CASE W Clip Seal Evap Q 3091016 20 9 211 SEAL Evap Core 3056661 21 9 211 GASKET BI0 Air lnl Flg Mt T0 Dash 3054170 22 9 218 GASKET BI0 B A l T0 Out Ext 3055602 23 9 215 CASE Cutoff W Orifice 3094407 24 8 917 NUT M10x1 5 25 8 857 FAN BI0 4 L 3094154 26 9 215 MOTOR BI0 22020945 27 9 216 BRACKET BI0 Mtr Supt l 3055833 28 8 977 SCREW HWH M4 2x1 41x13 22506732 29 9 215 TERMINAL Blo Mtr Grd 2 530 3033932 30 9 211 BRACKET Evap Mtg A 3059044 31 I 9 218 TUBE Mtr Clg 3040590 32 9 275 RESISTOR BI0 Mtr 22529265 33 9 211 CLAMP Spl Tube I 3055944 34 8 977 SCREW Hex W Fl Wa Tap M4 2x1 41x16 11509374 A 35 9 786 VALVE Temp 3 091077 9 786 VALVE Temp Cad Only 3090964 36 9 280 SHAFT W Lvr Defr 3095890 37 9 779 SEAT Defr Vlv 3047022 y 38 9 211 SEAL Evap To Case 3043555 39 9 779 VALVE Defr 3047136 40 9 21 1 SEAL Plstc 32 38x 38x 50 3018179 41 8 854 CORE Heater 3058622 42 8 854 STRAP Core Mtg 3056003 A 43 8 854 SHROUD Htr Core 3055305 44 9 21 1 COVER Core 3095865 A 45 9 21 1 SEAL Tube Mt 3090065 46 9 210 FILTER Evap Core 3053193 47 9 210 CORE Evap 3059973 4 48 9 211 GASKET Evap Case Cut to Length 3056496 1 i 1989 GENERAL MOTORS SERVICE PARTS OPERATIONS BUlCK 44J 1 0 89 9 45 9 000 GROUP
