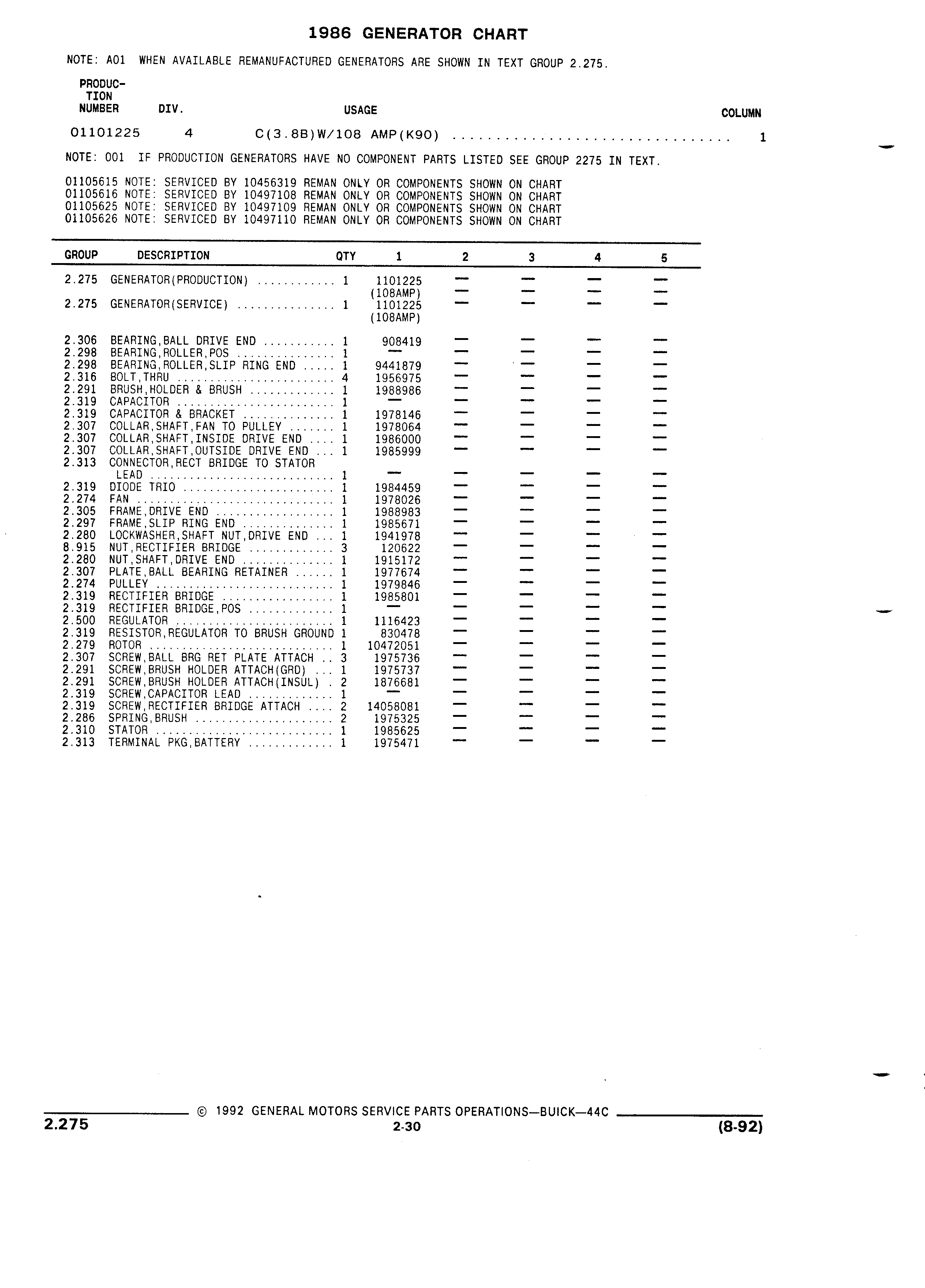

1986 GENERATOR CHART NOTE A01 WHEN AVAILABLE REMANUFACTURED GENERATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC TION NUMBER DIV USAGE COLUMN 01101225 4 C 3 8B W 108 AMP K90 1 NOTE 001 IF PRODUCTION GENERATORS HAVE NO COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT 01105615 NOTE SERVICED BY 10456319 REMAN ONLY OR COMPONENTS SHOWN ON CHART 01105616 NOTE SERVICED BY 10497108 REMAN ONLY OR COMPONENTS SHOWN ON CHART 01105625 NOTEZ SERVICED BY 10497109 REMAN ONLY OR COMPONENTS SHOWN ON CHART 01105626 NOTE SERVICED BY 10497110 REMAN ONLY OR COMPONENTS SHOWN ON CHART GROUP DESCRIPTION QTY 1 2 3 4 5 2 275 GENERATOR PRODUOTION 1 1101225 IOBAMP 2 275 GENERATOR SERVICE 1 1101225 108AMP 2 306 BEARING BALL DRIVE END 1 908419 2 298 BEARING ROLLER POS 1 2 298 BEARING ROLLER SLIP RING END 1 9441879 2 316 BOLT THRU 4 1956975 2 291 BRUSH HOLDER BRUSH 1 1988986 2 319 CAPACITOR 1 2 319 CAPACITOR BRACKET 1 1978146 2 307 COLLAR SHAFT EAN TO PULLEY 1 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1986000 2 307 COLLAR SHAFT 0UTSIDE DRIVE END 1 1985999 2 313 CONNECTOR RECT BRIDGE TO STATOR 1 LEAD 2 319 DIODE TRIO 1 1984459 2 274 FAN 1 1978026 2 305 FRAME DRIVE END 1 1988983 2 297 FRAME 5LIP RING END 1 1985671 2 280 LOCKWASHER SHAFT NUT DRIVE END 1 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 2 280 NUT SHAFT DRIVE END 1 1915172 T 2 307 PLATE BALL BEARING RETAINER 1 1977674 2 274 PULLEY 1 1979846 2 319 RECTIFIER BRIDGE 1 1985801 2 319 REOTIFIER BRIDGE POS 1 V 2 500 REGULATOR 1 1116423 2 319 RESISTOR REGULATOR T0 BRUSH GROUND 1 830478 2 279 ROTOR 1 10472051 2 307 SCREW BALL BRG RET PLATE ATTACH 3 1975736 2 291 SCREW BRUSH HOLDER ATTAOH GRD 1 1975737 2 291 SCREW BRUSH HOLDER ATTACH INSUL 2 1876681 2 319 SCREW CAPACITOR LEAD 1 2 319 SCREW RECTIFIER BRIDGE ATTACH 2 14058081 2 286 SPRING BRU5H 2 1975325 2 310 STATOR 1 1985625 2 313 TERMINAL PKG BATTERY 1 1975471 1 j 1992 GENERAL MOTORS SERVICE PARTS OPERAT ONS BU CK 44C 2 275 2 30 8 92
