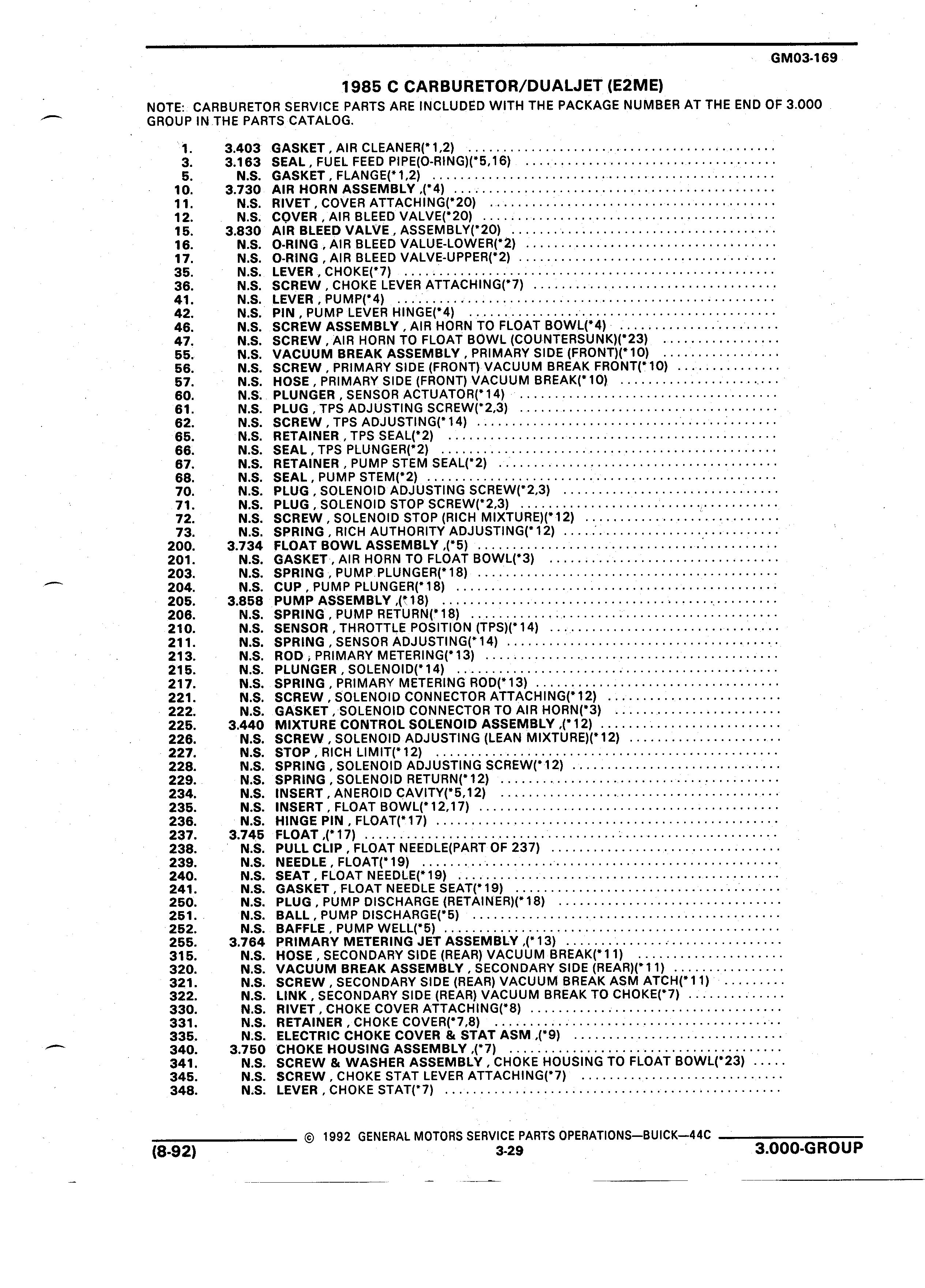

GM03 169 1985 C CARBURETOR DUALJET E2ME NOTE CARBURETOR SERVICE PARTS ARE INCLUDED WITH THE PACKAGE NUMBER AT THE END OF 3 000 GROUP IN THE PARTS CATALOG 1 3 403 GASKET AIR CLEANER 1 2 3 3 163 SEAL FUEL FEED PIPE O RING 5 16 A 5 N S GASKET FLANGE 1 2 10 3 730 AIR HORN ASSEMBLY 4 11 N S RIVET COVER ATTACHING 20 12 N S COVER AIR BLEED VALVE 20 15 3 830 AIR BLEED VALVE ASSEMBLY 20 16 N S O RING AIR BLEED VALUE LOWER 2 17 N S O RING AIR BLEED VALVE UPPER 2 35 N S LEVER CHOKE 7 36 N S SCREW CHOKE LEVER ATTACH NG 7 41 N S LEVER PUMP 4 I 42 N S PIN PUMP LEVER H NGE 4 46 N S SCREW ASSEMBLY AIR HORN TO FLOAT BOWL 4 47 N S SCREW AIR HORN TO FLOAT BOWL COU NTERSUNK 23 55 N S VACUUM BREAK ASSEMBLY PRIMARY SIDE FRONT 10 56 N S SCREW PRIMARY SIDE FRONT VACUUM BREAK FRONT 10 57 N S HOSE PRIMARY SIDE FRONT VACUUM BREAK 10 60 N S PLUNGER SENSOR ACTUATOR 14 61 N S PLUG TPS ADJUSTING SCREW 2 3 62 N S SCREW TPS ADJUSTING 14 65 N S RETAINER TPS SEAL 2 66 N S SEAL TPS PLUNGER 2 67 N S RETAINER PUMP STEM SEAL 2 68 N S SEAL PUMP STEM 2 70 N S PLUG SOLENOID ADJUSTING SCREW 2 3 71 N S PLUG SOLENOID STOP SCREW 2 3 72 N S SCREW SOLENOID STOP RICH MIXTURE 12 73 N S SPRING RICH AUTHORITY ADJUSTING 12 200 3 734 FLOAT BOWL ASSEMBLY 5 201 N S GASKET AIR HORN TO FLOAT BOWL 3 203 N S SPRING PUMP PLUNGER 18 204 N S CUP PUMP PLUNGER 18 205 3 858 PUMP ASSEMBLY 18 206 N S SPRING PUMP RETURN 18 210 N S SENSOR THROTTLE POSITION TPS 14 211 N S SPRING SENSOR ADJUSTING 14 213 N S ROD PRIMARY METERING 13 215 N S PLUNGER SOLENOID 14 217 N S SPRING PRIMARY METERING ROD 13 221 N S SCREW SOLENOID CONNECTOR ATTACH NG 12 222 N S GASKET SOLENOID CONNECTOR TO AIR HORN 3 225 3 440 MIXTURE CONTROL SOLENOID ASSEMBLY 12 226 N S SCREW SOLENOID ADJUSTING LEAN M XTURE 12 227 N S STOP RICH LIMIT 12 228 N S SPRING SOLENOID ADJUSTING SCREW 12 229 N S SPRING SOLENOID RETU RN 12 234 N S INSERT ANEROID CAVlTY 5 12 235 N S INSERT FLOAT BOWL 12 17 236 N S HINGE PIN FLOAT 17 237 3 745 FLOAT 17 238 N S PULL CLIP FLOAT NEEDLE PART OF 237 239 N S NEEDLE FLOAT 19 240 N S SEAT FLOAT NEEDLE 19 241 N S GASKET FLOAT NEEDLE SEAT 19 250 N S PLUG PUMP DISCHARGE RETAIN ER 18 251 N S BALL PUMP DISCHARGE 5 252 N S BAFFLE PUMP WELL 5 255 3 764 PRIMARY METERING JET ASSEMBLY 13 315 N S HOSE SECONDARY SIDE REAR VACUUM BREAK 11 320 N S VACUUM BREAK ASSEMBLY SECONDARY SIDE REAR 11 321 N S SCREW SECONDARY SIDE REAR VACUUM BREAK ASM ATCH 11 322 N S LINK SECONDARY SIDE REAR VACUUM BREAK TO CHOKE 7 330 N S RIVET CHOKE COVER ATTACHING 8 331 N S RETAINER CHOKE COVER 7 8 335 N S ELECTRIC CHOKE COVER STAT ASM 9 A 340 3 750 CHOKE HOUSING ASSEMBLY 7 341 N S SCREW WASHER ASSEMBLY CHOKE HOUSING TO FLOAT BOWL 23 345 N S SCREW CHOKE STAT LEVER ATTACHING 7 348 N S LEVER CHOKE STAT 7 j 1992 GENERAL MOTORS SERVICE PARTS 0PERATIONS BUICK 44C 8 92 2 zs 3 000 GROUP
