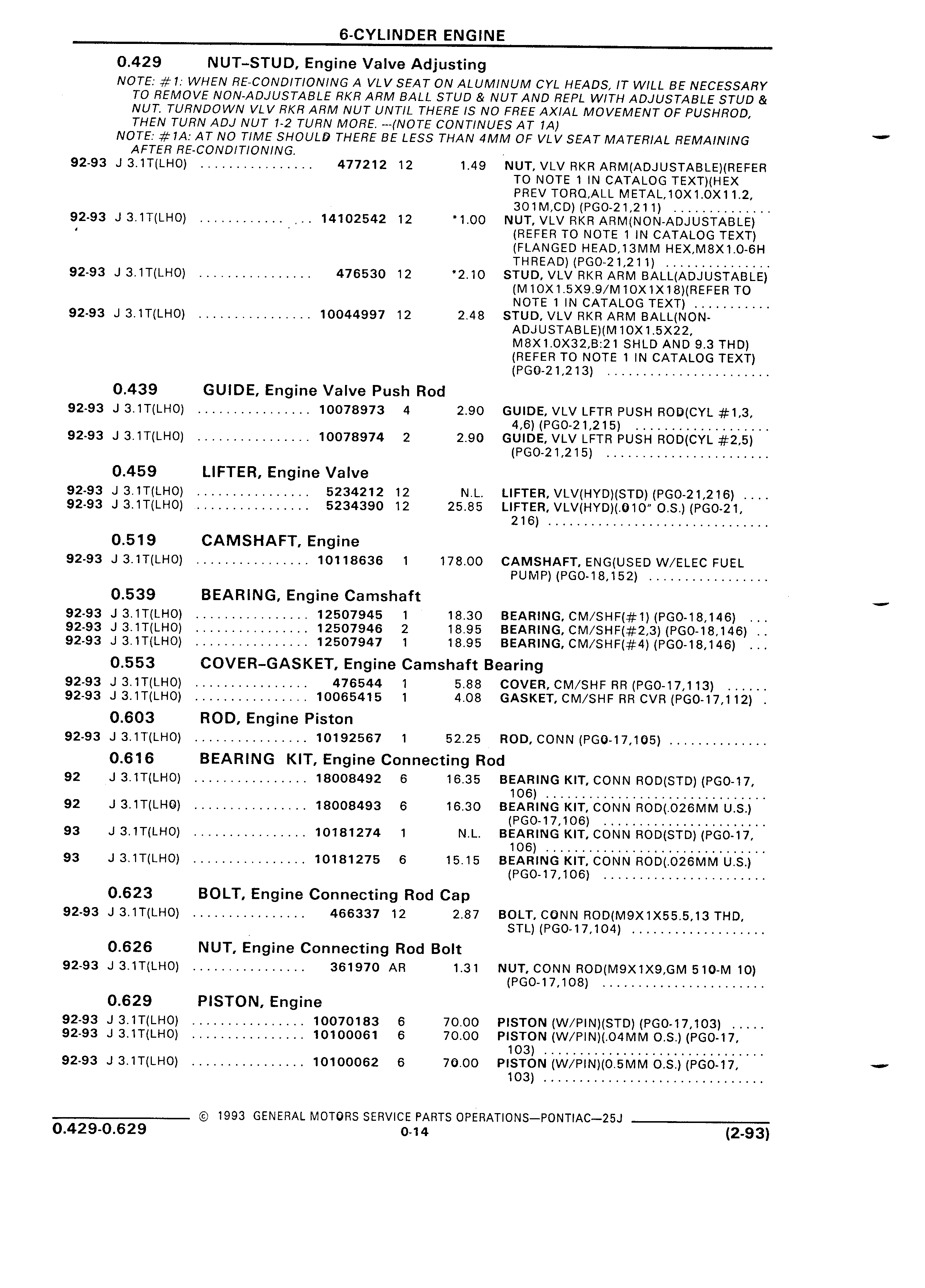

6 CYLINDER ENGINE 0 429 NUT STUD Engine Valve Adjusting NOTE 1 WHEN RE CONDIT ON NG A VLV SEAT ON ALUMINUM CYL HEADS IT WILL BE NECESSARY TO REMOVE NON ADJUSTABLE RKR ARM BALL STUD NUT AND REPL W TH ADJUSTABLE STUD NUT TURNDOWN VLV RKR ARM NUT UNTIL THERE IS NO FREE AXIAL MOVEMENT OF PUSHROD THEN TURN ADJ NUT 7 2 TURN MORE NOTE CONTINUES AT 1A NOTE 1A AT NO T ME SHOULD THERE BE LESS THAN 4MM OF VLV SEAT MATERIAL REMAINING T AFTER RE COND TIONING 92 93 J 3 1T LHO 477212 12 1 49 NUT VLV RKR ARM ADJUSTABLE REFER TO NOTE 1 IN CATALOG TEXT HEX PREV TORO ALL METAL 10X1 0X11 2 301M CD PGO 21 211 92 93 J 3 1T LHO 4 14102542 12 1 00 NUT VLV RKR ARM NON ADJUSTABLE REFER TO NOTE 1 IN CATALOG TEXT FLANGED HEAD 13MM HEX M8X1 0 6H THREAD PGO 21 211 92 93 J 3 1T LHO 476530 12 2 10 STUD VLV RKR ARM BALL ADJUSTABLE M 10X1 5X9 9 M10X1X18 REFER TO NOTE 1 IN CATALOG TEXT 92 93 J 3 1T LHO 10044997 12 2 48 STUD VLV RKR ARM BALL NON ADJUSTABLE M1OX1 5X22 M8X1 0X32 B 21SHLD AND 9 3 THD REFER TO NOTE 1 IN CATALOG TEXT PGO 21 213 0 439 GUIDE Engine Valve Push Rod 92 93 J 3 1T LHO 10078973 4 2 90 GUIDE VLV LFTR PUSH ROD CYL 1 3 4 6 PGO 21 215 92 93 J 3 1T LHO 10078974 2 2 90 GUIDE VLV LFTR PUSH ROD CYL 2 5 PGO 21 215 0 459 LIFTER Engine Valve 92 93 J 3 1T LHO 5234212 12 N L LlFTER VLV HYD STD PGO 21 216 92 93 J 3 1T LHO 5234390 12 25 85 LIFTER VLV HYD 010 O S PGO 21 216 0 519 CAMSHAFT Engine 92 93 J 3 1T LHO 10118636 1 178 00 CAMSHAFT ENG USED W ELEC FUEL PUMP PGO 18 152 0 539 BEARING Engine Camshaft I 92 93 J 3 1T LHO 12507945 1 18 30 BEARING CM SHF 1 PGO 18 146 92 93 J 3 1T LHO 12507946 2 18 95 BEAR NG CM SHF 2 3 PGO 18 146 92 93 J 3 1T LHO 12507947 1 18 95 BEARING CM SHF 4 PGO 18 146 0 553 COVER GASKET Engine Camshaft Bearing 92 93 J 3 1T I H0 476544 1 5 88 COVER CM SHF RR PGO 17 113 92 93 J 3 1T LHO 10065415 1 4 08 GASKET CM SHF RR CVR PGO 17 112 0 603 ROD Engine Piston 92 93 J 3 1T LHO 10192567 1 52 25 ROD CONN PGO 17 105 0 616 BEARING KIT Engine Connecting Rod 92 J 3 lT LHO 18008492 6 16 35 BEARING KIT CONN ROD STD PGO 17 106 92 J 3 1T LHO 18008493 6 16 30 BEARING KIT CONN ROD O26MM U S PGO 17 106 93 J 3 1T LHO 10181274 1 N L BEARING KIT CONN ROD STD PGO 17 106 93 J 3 1T LHO 10181275 6 15 15 BEARING KIT CONN ROD O26MM U S PGO 17 106 0 623 BOLT Engine Connecting Rod Cap 92 93 J 3 1T LHO 466337 12 2 87 BOLT CONN ROD M9X1X55 5 13 THD 4 STL PGO 17 104 0 626 NUT Engine Connecting Rod Bolt 92 93 J 3 1T LHO 361970 AR 1 31 NUT CONN ROD M9X1X9 GM 510 M 10 PGO 17 108 0 629 PISTON Engine 92 93 J 3 1T LHO 10070183 6 70 00 PISTON W PIN STD PGO 17 103 92 93 J 3 1T LHO 10100061 6 70 00 PISTON W P N 04MM O S PGO 17 103 92 93 J 3 1T LHO 10100062 6 70 00 PISTON W PIN 0 5MM O S PGO 17 103 i 1993 GENERAL MOTORS SERVICE PARTS 0PERAT ONS PONTIAC 25J T Y 0 429 0 629 0 14 2 93
