Illustration Catalog 31A July 1987
PrevPrevious Page - Illustration Catalog 31A July 1987Illustration Catalog 31A July 1987Next Page - Illustration Catalog 31A July 1987Next

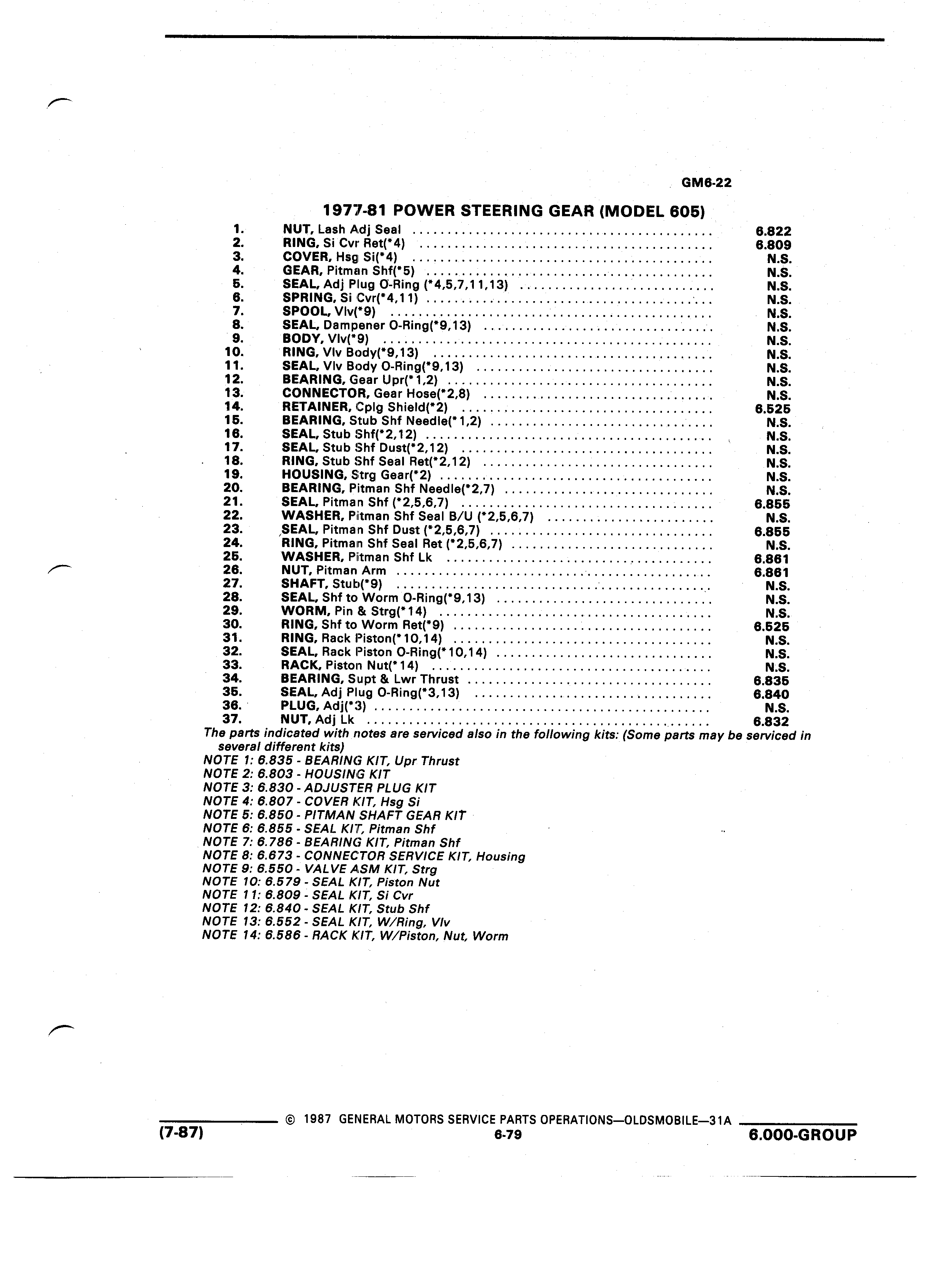

GM6 22 19711 81 POWER STEERING GEAR MODEL 605 1 NUT Lash Adj Seal 6 822 2 RING Si Cvr Ret 4 6 809 3 COVER Hsgl Si 4 N S 4 GEAR Pitman Shf 5 N S 5 SEAL Adj Plug O Ring 4 5 7 1 1 13 N S 6 SPRING Si Cvr 4 11 N S 7 SPOOL VIv 9 N S 8 SEAL Dampener O Ring 9 13 N S 9 BODY Vlv 9 N S 10 RING Vlv B0dy 9 13 N S 11 SEAL Vlv Body O Ring 9 13 N S I 12 BEARING Gear Upr 1 2 N S 13 CONNECTOR Gear Hose 2 8 N S 14 RETAINER Cplg ShieId 2 6 525 15 BEARING Stub Shf Needle 1 2 N S 16 SEAL Stub hf 2 12 N S 17 SEAL Stub Shf Dust 2 12 N S 18 RING Stub Shf Seal Ret 2 12 N S 19 HOUSING Sitrg Gear 2 N S 20 BEARING Pitman Shf NeedIe 2 7 N S 21 SEAL Pitman Shf 2 5 6 7 6 855 22 WASHER Pitman Shf Seal B U 2 5 6 7 N S 23 SEAL Pitman Shf Dust 2 5 6 7 6 855 24 RING Pitmain Shf Seal Ret 2 5 6 7 N S 25 WASHER Piitman Shf Lk 6 861 26 NUT Pitman Arm 6 861 27 SHAFT Stub 9 N S 28 SEAL Shf to Worm O Ring 9 13 N S 29 WORM Pin Strg l4 N S 30 RING Shf to Worm Ret 9 6 525 31 RING Rack Piston 10 14 N S 32 SEAL Rack Piston O Ring 10 14 N S 33 RACK Piston Nut 14 N S 34 BEARING Supt Lwr Thrust 6 835 35 SEAL Adj Plug O Ring 3 13 6 840 36 PLUG Adj 3 N S 37 NUT Adj Lk 6 832 The parts indicated with notes are serviced also in the following kits Some parts may be serviced in several different kits NOTE 1 6 835 BEARING KIT Upr Thrust NOTE 2 6 803 HOUSING KIT NOTE 3 6 830 ADJUSTER PLUG KIT NOTE 4 6 807 COVER KIT Hsg Si NOTE 5 6 850 PITMAN SHAFT GEAR KIT NOTE 6 6 855 SEAL K T Pitman Shf NOTE 7 6 786 BEARING KIT Pitman Shf NOTE 8 6 673 CONNECTOR SERVICE KIT Housing NOTE 9 6 550 VALVE ASM KIT Strg NOTE 10 6 579 SEAL KIT Piston Nut NOTE 11 6 809 SEAL KIT Si Cvr NOTE 12 6 840 SEAL KIT Stub Shf NOTE 13 6 552 SEAL KIT W Ring Vlv NOTE 14 6 586 RACK KIT W Piston Nut Worm 1987 GENERAL MOTORS SERVICE PARTS OPERATIONS OLDSMOBILE 31A 7 87 eas 6 000 GROUP
