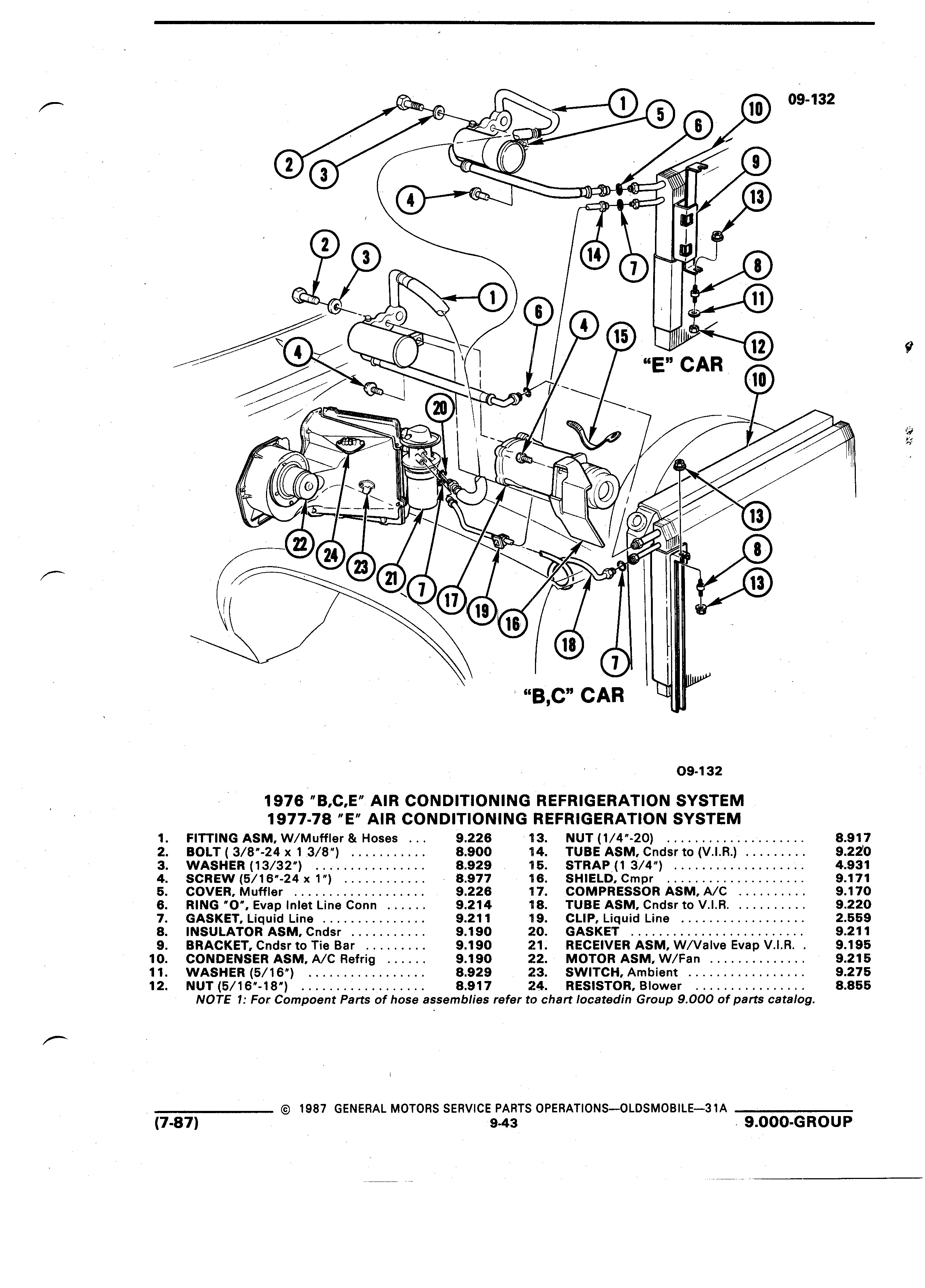

09 192 O O G Q I A We 0 10 0 6 n l Iii Q A T 0 0 0 1 QD I S liu gg 1 I I 1 E CAR A 0 I v I I I 4g II I I A Z 1 1 0 7 IB Ea 0 KE G 0 if 1 i B c CAR lu n 09 192 I 1976I B C E AIR CONDITIONING REFRIGERATION SYSTEM 1977 78 E AIR CONDITIONING REFRIGERATION SYSTEM 1 FITTING ASM W Muffler Hoses 9 226 13 NUT 1 4 20 8 917 2 BOLT 3 8 24 x 1 3 8 8 900 14 TUBE ASM cndsr to v 1 R 9 22 0 9 WASHER 19 92 8 929 15 STRAP 1 9 4 4 931 4 SCREW 5 16 24 x 1 8 977 16 SHIELD Cmpr 9 171 5 COVER Muffler 9 226 17 COMPRESSOR ASM A c 9 170 6 RING O Evap Inlet Line Conn 9 214 18 TUBE ASM Cndsr to V I R 9 220 7 GASKET Liquid Line 9 211 19 CLIP Liquid Line 2 559 8 1NSU1 ATOR ASM cndsr 9 190 20 GASKET 9 211 9 BRACKET Cndsr to Tie Bar 9 190 21 RECEIVER ASM W Valve Evap V I R 9 195 10 CONDENSER ASM A c Refrig 9 190 22 MOTOR ASM W Fan 9 215 11 WASHER 5 16 8 929 23 SWITCH Ambient 9 275 12 NUT 5 16 18 8 917 24 RESISTOR Blower 8 855 NOTE 1 For Compoent Parts of hose assemblies refer to chart Iocatedin Group 9 000 of parts catalog Y i 1987 GENERAL MOTORS SERVICE PARTS 0PERAT10Ns 0LDsMOBiLE 31A 1 7 87 9 49 9 000 GROUP
