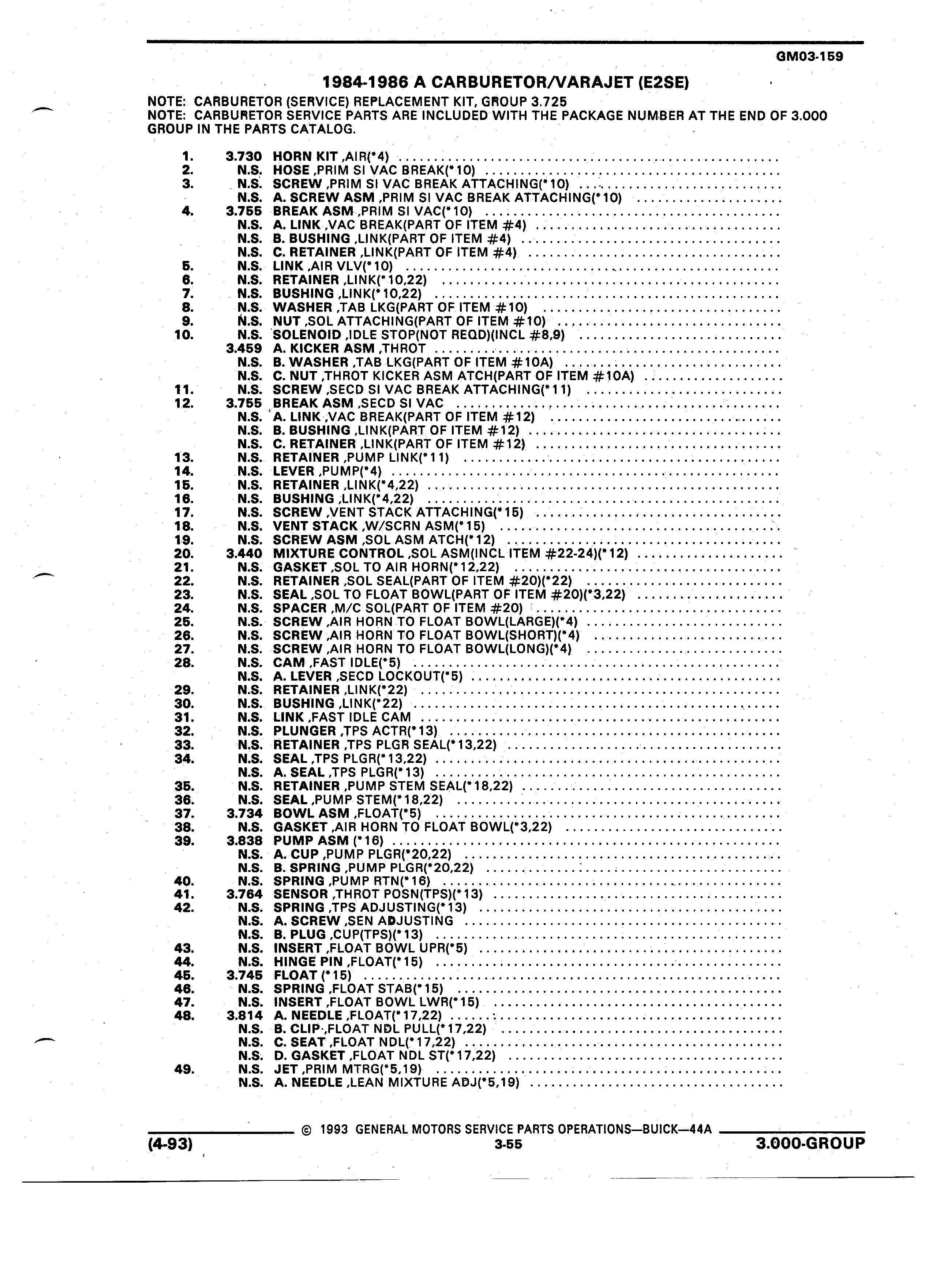

GM03 159 I 1 984 1986 A CARBURETORNARAJET E2SE NOTE CARBURETOR SERVICE REPLACEMENT KIT GROUP 3 725 NOTE CARBURETOR SERVICE PARTS ARE INCLUDED WITH THE PACKAGE NUMBER AT THE END OF 3 000 GROUP IN THE PARTS CATALOG I 1 3 730 HORN KIT A R 4 2 N S HOSE PR M SI VAC BREAK 10 3 N S SCREW PRIM SI VAC BREAK ATTACHING 10 N S A SCREW ASM PR M SI VAC BREAK ATTACHING 10 4 3 755 BREAK ASM PR M SI VAC 10 N S A LINK VAC BREAK PART OF ITEM 4 N S B BUSHING LINK PART OF ITEM 4 N S C RETAINER LINK PART OF ITEM 4 5 N S LINK AIR VLV 10 6 N S RETAINER L NK 10 22 7 N S BUSHING LINK 10 22 8 N S WASHER TAB LKG PART OF ITEM 10 9 N S NUT SOL ATTACHING PART OF ITEM 10 10 N S SOLENOID IDLE STOP NOT REOD NCL 8 9 3 459 A KICKER ASM THROT I N S 8 WASHER TAB LKG PART OF ITEM 10A N S C NUT THROT KICKER ASM ATCH PART OF ITEM 1OA 11 N S SCREW SECD SI VAC BREAK ATTACHING 11 12 3 755 lBREAK ASM SECD SI VAC Q N S A LINK VAC BREAK PART OF ITEM 12 N S B BUSHING LINK PART OF ITEM 12 N S C RETAINER LINK PART OF ITEM 12 13 N S RETAINER PUMP LINK 11 I 14 N S LEVER PUMP 4 15 N S RETAINER LINK 4 22 16 N S BUSHING LINK 4 22 17 N S SCREW VENT STACK ATTACH NG 15 18 N S VENT STACK W SCRN ASM 15 19 N S SCREW ASM SOL ASM ATCH 12 R 20 3 440 MIXTURE CONTROL SOL ASM INCL ITEM 22 24 12 21 N S GASKET SOL TO AIR HORN 12 22 22 N S RETAINER SOL SEAL PART OF ITEM 20 22 23 N S SEAL SOL TO FLOAT BOWL PART or ITEM 20 3 22 24 N S SPACER M C SOL PART OF ITEM 20 7 25 N S SCREW AIR HORN TO FLOAT BOWL LARGE 4 26 N S SCREW AIR HORN TO FLOAT BOWL SHORT 4 27 N S SCREW AIR HORN TO FLOAT BOWL LONG 4 T 28 N S CAM FAST DLE 5 N S A LEVER SECD LOCKOUT 5 R 29 N S RETAINER LINK 22 30 N S BUSHING LINK 22 I 31 N S LINK FAST IDLE CAM 32 N S PLUNGER TPS ACTR 13 33 N S RETAINER TPS PLGR SEAL 13 22 34 N S SEAL TPS PLGR 13 22 N S A SEAL TPS PLGR 13 35 N S RETAINER PUMP STEM SEAL 18 22 36 N S SEAL PUMP STEM 18 2V2 Q 37 3 734 BOWL ASM FLOAT 5 38 N S GASKET A R HORN TO FLOAT BOWL 3 22 39 3 838 PUMP ASM 16 N S A CUP PUMP PLGR 20 22 N S B SPRING PUMP PLGR 20 22 Q 40 N S SPRING PUMP RTN 16 41 3 764 SENSOR THROT POSN TPS 13 42 N S SPRING TPS ADJUSTING 13 N S A SCREW SEN ADJUSTING N S B PLUG CUP TPS 13 43 N S INSERT FLOAT BOWL UPR 5 44 N S HINGE PIN FLOAT 15 45 3 745 FLOAT 15 46 N S SPRING FLOAT STAB 15 47 N S INSERT FLOAT BOWL LWR 15 4 48 3 814 A NEEDLE FLOAT 17 22 N S B CLIP FLOAT NDL PULL 17 22 N S C SEAT FLOAT NDL 17 22 N S D GASKET FLOAT NDL ST 17 22 49 N S JET PRIM MTRG 5 19 N S A NEEDLE LEAN MIXTURE ADJ 5 19 t 1993 GENERAL MOTORS SERVICE PARTS OPERAT ONS BUICK 44A i 4 93 za ss 3 000 GROUP
