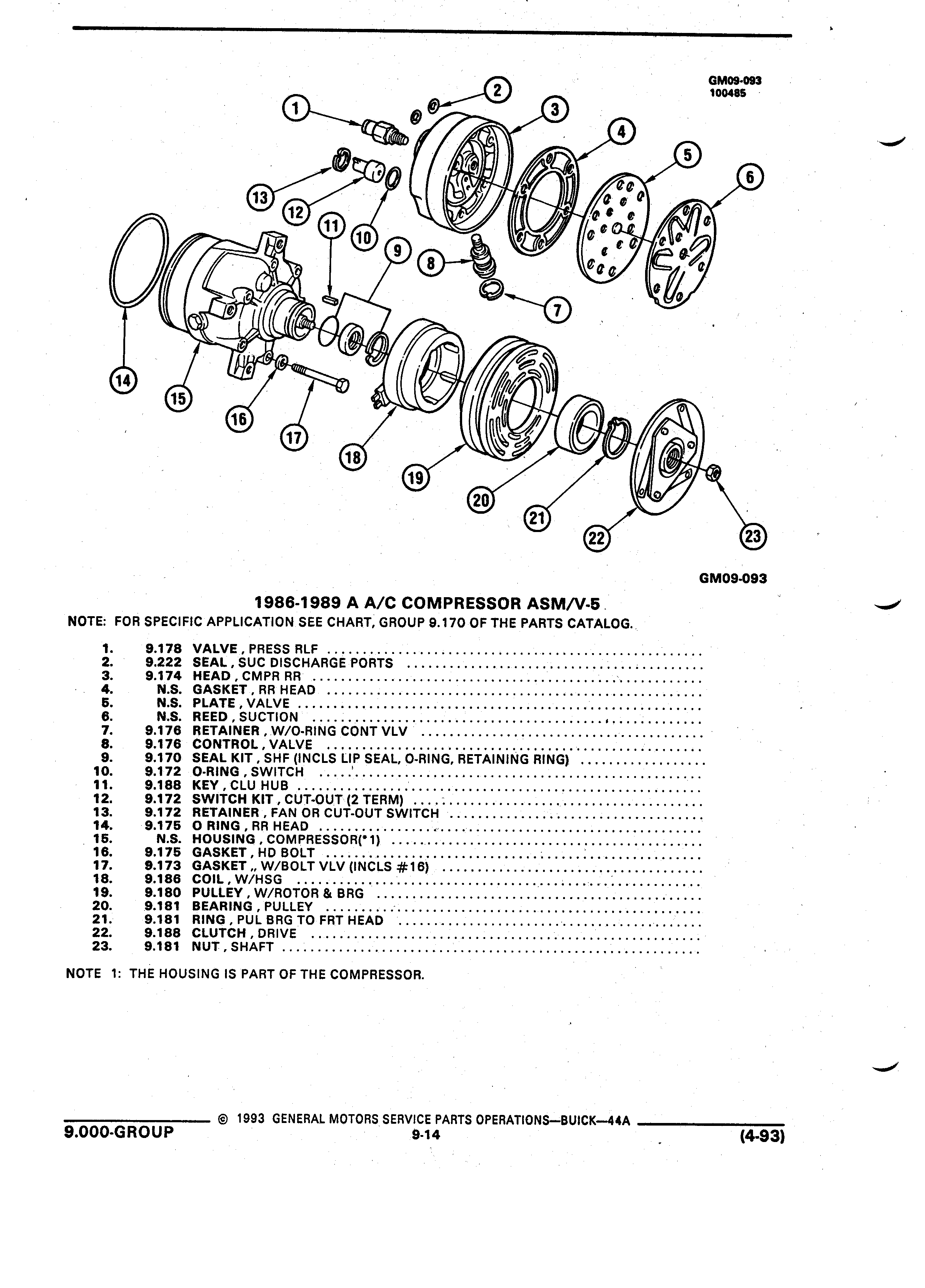

x I K Gmc cs MC wows 0 6 K 0 6 I IRI IQ w p I 3 I V OW Q I 4 5 y 0 M I GQ R t y I s Mu Q Q 5 0 xxx 6 I I 6 G N ev I I Q I I j J 1 GM09 093 1986 1989 A A C COMPRESSOR ASM V 5 M Cl NOTE FOR SPECIFIC APPLICATION SEE CHART GROUP 9 170 OF THE PARTS CATALOG 1 9 178 VALVE PRESS RLF 2 8 9 222 SEAL SUC DISCHARGE PORTS 3 9 174 HEAD CMPR RR 4 N S GASKET RR HEAD 5 N S PLATE VALVE 6 N S REED SUCTION 7 9 176 RETAINER W O RING CONT VLV I 8 9 176 CONTROL VALVE 9 9 170 SEAL KIT SHF INCLS LIP SEAL O RING RETAINING RING 10 9 172 O RING SWITCH I 11 9 188 KEY CLU HUB I 12 9 172 SWITCH KIT CUT OUT9 2 TERM 1 I I 13 9 172 RETAINER FAN OR CUT OUT SWITCH 14 9 175 0 RING RR HEAD 15 N S HOUSING COMPRESSOR 1 16 9 175 GASKET HD BOLT L 17 9 173 GASKET W BOLT VLV INCLS 16 18 9 186 COIL W HSG V A 19 9 180 PULLEY W ROTOR BRG 20 9 181 BEARING PULLEY 21 9 181 RING PUL BRG TO FRT HEAD 22 9 188 CLUTCH DRIVE 23 9 181 NUT SHAFT NOTE 1 THE HOUSING IS PART OF THE COMPRESSOR I I A 1993 GENERAL MOTORSISERVICE PARTS OPERATIONS BUICK 44A j 9 000 GROUP 9 14 4 93
