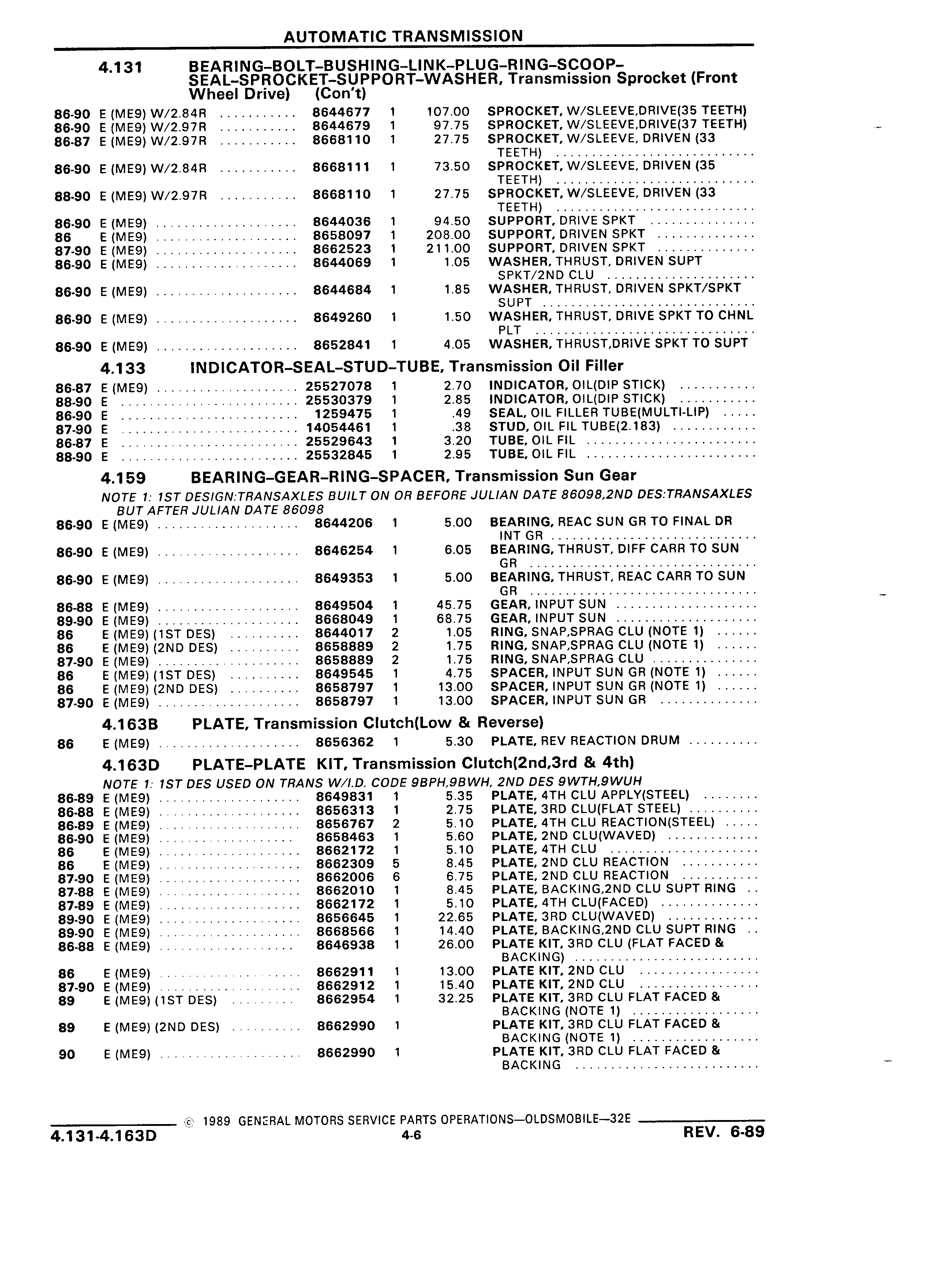

AUTOMATIC TRANSMISSION 4 131 BEARING BOLT BUSHING LINK PLUG RING SCOOP SEAL SPROCKET SUPPORT WASHER Transmission Sprocket Front Wheel Drive Con t 86 90 E ME9 W 2 84R 8644677 1 107 00 SPROCKET W SLEEVE DR VE 35 TEETH 86 90 E ME9 W 2 97R 8644679 1 97 75 SPROCKET W SLEEVE DRIVE 37 TEETH 86 87 E NIE9 W 2 97R 8668110 1 27 75 SPROCKET W SLEEVE DRIVEN 33 TEETH 86 90 E ME9 W 2 84R 8668111 1 73 50 SPROCKET W SLEEVE DRIVEN 35 TEETH 88 90 E IVIE9 W 2 97R 8668110 1 27 75 SPROCKET W SLEEVE DRIVEN 33 TEETH 86 90 E ME9 8644036 1 94 50 SUPPORT DRIVE SPKT 86 E ME9 8658097 1 208 00 SUPPORT DRIVEN SPKT 87 90 E ME9 8662523 1 211 00 SUPPORT DRIVEN SPKT 86 90 E ME9 8644069 1 1 05 WASHER THRUST DRIVEN SUPT SPKT 2ND CLU 86 90 E ME9 8644684 1 1 85 WASHER THRUST DRIVEN SPKT SPKT SUPT 86 90 E ME9 8649260 1 1 50 WASHER THRUST DRIVE SPKT TO CHNL PLT 86 90 E ME9 8652841 1 4 05 WASHER THRUST DRIVE SPKT TO SUPT 4 133 INDICATOR SEAL STUD TUBE Transmission Oil Filler 86 87 E ME9 25527078 1 2 70 INDICATOR 0IL DIP STICK 88 90 E 25530379 1 2 85 INDICATOR OIL DIP STICK 86 90 E 1259475 1 49 SEAL OIL FILLER TUBE MULTI LIP 87 90 E 14054461 1 38 STUD OIL FIL TUBE 2 183 86 87 E 25529643 1 3 20 TUBE OIL FIL 88 90 E 25532845 1 2 95 TUBE OIL FIL 4 159 BEARING GEAR RING SPACER Transmission Sun Gear NOTE 1 1ST DESIGN TRANSAXLES BUILT ON OR BEFORE JULIAN DATE 86098 2ND DE TRANSAXLE BUT AFTER JUL AN DATE 86098 86 90 E ME9 8644206 1 5 00 BEARING REAC SUN GR TO FINAL DR INT GR 86 90 E ME9 8646254 1 6 05 BEARING THRUST DIFF CARR TO SUN GR 86 90 E ME9 8649353 1 5 00 BEARING THRUST REAC CARR TO SUN GR 86 88 E ME9 8649504 1 45 75 GEAR INPUT SUN 89 90 E ME9 8668049 1 68 75 GEAR INPUT SUN 86 E ME9 1ST DES 8644017 2 1 05 RING SNAP SPRAG CLU NOTE 1 86 E ME9 2ND DES 8658889 2 1 75 RING SNAP SPRAG CLU NOTE 1 87 90 E ME9 8658889 2 1 75 RING SNAP SPRAG CLU 86 E IVIE9 1ST DES 8649545 1 4 75 SPACER INPUT SUN GR NOTE 1 86 E IVIE9 2ND DES 8658797 1 13 00 SPACER INPUT SUN GR NOTE 1 87 90 E ME9 8658797 1 13 00 SPACER INPUT SUN GR 4 163B PLATE Transmission CIutch Low Reverse 86 E IVIE9 8656362 1 5 30 PLATE REV REACTION DRUM 4 163D PLATE PLATE KIT Transmission CIutch 2nd 3rd 4th NOTE 1 1ST DES USED ON TRANS W I D CODE 9BPH 9BWH 2ND DES 9WTH 9WUH 86 89 E I IE9 8649831 1 5 35 PLATE 4TH CLU APPLY STEEL 86 88 E I IE9 8656313 I 2 75 PLATE 3RD CLU FLAT STEEL 86 89 E ME9 8656767 2 5 10 PLATE 4TH CLU REACTION STEEL 86 90 E ME9 8658463 1 5 60 PLATE 2ND CLU WAVED 86 E ME9 8662172 1 5 10 PLATE 4TH CLU 86 E ME9 8662309 5 8 45 PLATE 2ND CLU REACTION 87 90 E IVIE9 8662006 6 6 75 PLATE 2ND CLU REACTION 87 88 E ME9 8662010 1 8 45 PLATE BACKING 2ND CLU SUPT RING 87 89 E ME9 8662172 1 5 10 PLATE 4TH CLU FACED 89 90 E IVIE9 8656645 1 22 65 PLATE 3RD CLU WAVED 89 90 E ME9 8668566 1 14 40 PLATE BACKING 2ND CLU SUPT RING 86 88 E IVIE9 8646938 1 26 00 PLATE KIT 3RD CLU FLAT FACED BACKING 86 E ME9 8662911 I 13 00 PLATE KIT 2ND CLU 87 90 E I IE9 8662912 1 15 40 PLATE KIT 2ND CLU 89 E ME9 1ST DES 8662954 1 32 25 PLATE KIT 3RD CLU FLAT FACED BACKING NOTE 1 89 E ME9 2ND DES 8662990 1 PLATE KIT 3RD CLU FLAT FACED BACKING NOTE 1 90 E ME9 8662990 1 PLATE KIT 3RD CLU FLAT FACED BACKING W 1 T Qi 1989 GENERAL MOTORS SERVICE PARTS OPERATIONS OLDSMOB LE 32E L 4 1 31 4 163D 4 6 REV 6 89
