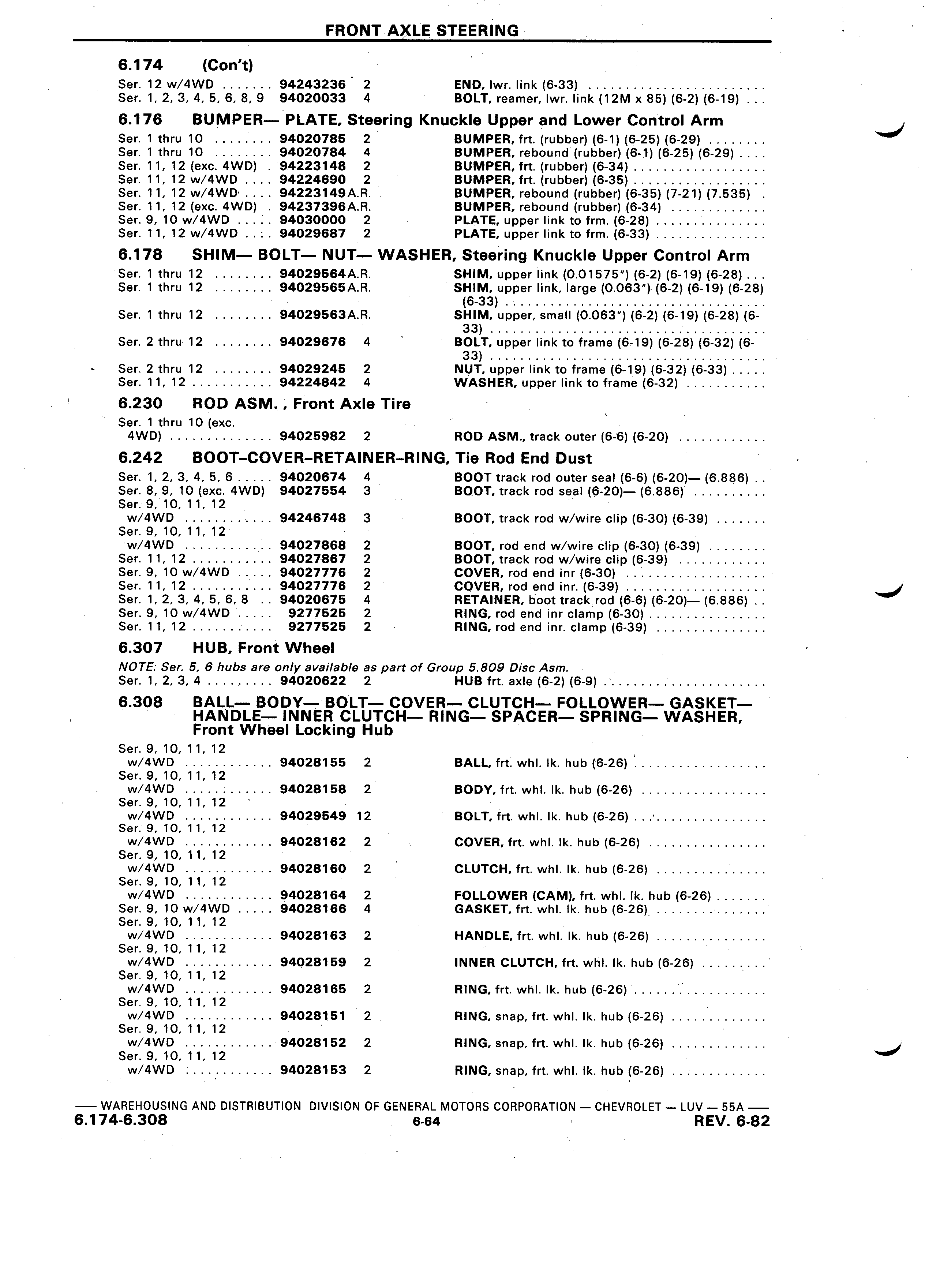

FRONT AXLE STEERING t 1 6 1 74 Con t Ser 12 w 4WD 94243236 2 END Iwr link 6 33 Ser 1 2 3 4 5 6 8 9 94020033 4 BOLT reamer Iwr link 12M x 85 6 2 6 19 6 176 BUMPER PLATE Steering Knuckle Upper and Lower Control Arm Ser 1 thru 10 94020785 2 BUMPER frt rubber 6 1 6 25 6 29 Ser 1 thru 10 94020784 4 BUMPER rebound rubber 6 1 6 25 6 29 Ser 11 12 exc 4WD 94223148 2 BUMPER frt rubber 6 34 Ser 1 1 12 w 4WD 94224690 2 BUMPER frt rubber 6 35 Ser 11 12 w 4WDi 94223149A R BUMPER rebound rubber 6 35 7 21 7 535 Ser 11 12 exc 4WD 94237396A R BUMPER rebound rubber 6 34 Ser 9 10 w 4WD Q 94030000 2 PLATE upper link to frm 6 28 Ser 11 12 w 4WD 94029687 2 PLATE upper link to frm 6 33 6 178 SHIM BOLT NUT WASHER Steering Knuckle Upper Control Arm Ser 1 thru 12 94029564A R SHIM upper link 0 01575 6 2 6 19 6 28 Ser 1 thru 12 94029565A R SHIM upper link large 0 063 6 2 6 19 6 28 6 33 Ser 1 thru 12 94029563A R SHIM upper small 0 063 6 2 6 19 6 28 6 33 Ser 2 thru 12 94029676 4 BOLT upper link to frame 6 19 6 28 6 32 6 33 Ser 2 thru 12 94029245 2 NUT upper link to frame 6 19 6 32 6 33 Ser 11 12 94224842 4 WASHER upper link to frame 6 32 I 6 230 ROD ASM Front Axle Tire Ser 1 thru 10 exc 4WD 94025982 2 ROD ASM track outer 6 6 6 20 6 242 BOOT COVER RETA NER R NG Tie Rod End Dust Ser 1 2 3 4 5 6 94020674 4 V BOOT track rod outer seal 6 6 6 20 6 886 Ser 8 9 10 exc 4WD 94027554 3 BOOT track rod seal 6 20 6 886 Ser 9 10 11 12 I w 4WD 94246748 3 BOOT track rod w wire clip 6 30 6 39 Ser 9 10 11 12 w 4WD V 94027868 2 BOOT rod end w wire clip 6 30 6 39 Ser 1 1 12 94027867 2 BOOT track rod w wire clip 6 39 Ser 9 10 w 4WD 94027776 2 COVER rod end inr 6 30 Ser 11 12 94027776 2 COVER rod end inr 6 39 Ser 1 2 3 4 5 6 8 94020675 4 RETAINER boot track rod 6 6 6 20 6 886 Ser 9 10 w 4WD 9277525 2 RING rod end inr clamp 6 30 Ser 11 12 9277525 2 RING rod end inr clamp 6 39 6 307 HUB Front Wheel NOTE Ser 5 6 hubs are only available as part of Group 5 809 Disc Asm Ser 1 2 3 4 94020622 2 HUB frt axle 6 2 6 9 4 6 308 BALL BODY BOLT COVER CLUTCH FOLLOWER GASKET HANDLE INNER CLUTCH RING SPACER SPRING WASHER Front Wheel Locking Hub Ser 9 10 11 12 A w 4WD 94028155 2 BALL frt whl lk hub 6 26 Ser 9 10 11 12 w 4WD 94028158 2 BODY frt whl lk hub 6 26 Ser 9 10 11 12 w 4WD 94029549 12 BOLT frt whl Ik hub 6 26 Ser 9 10 11 12 w 4WD 94028162 2 COVER frt whl lk hub 6 26 Ser 9 10 11 12 w 4WD 94028160 2 CLUTCH frt whl Ik hub 6 26 Ser 9 10 11 12 w 4WD 94028164 2 FOLLOWER CAM frt whl lk hub 6 26 Ser 9 10 w 4WD 94028166 4 GASKET frt whl lk hub 6 26 Ser 9 10 11 12 w 4WD 94028163 2 HANDLE frt whl Ik hub 6 26 Ser 9 10 11 12 i w 4WD 94028159 2 INNER CLUTCH frt whl Ik hubi 6 26 Ser 9 10 11 12 w 4WD 94028165 2 RING frt whl Ik hub 6 26 Ser 9 10 11 12 w 4WD 94028151 2 RING snap frt whl lk hub 6 26 V Ser 9 10 11 12 w 4WD 94028152 2 RING snap frt whl lk hub 6 26 Ser 9 10 11 12 w 4WD l 94028153 2 RING snap frt whl lk hub 6 26 WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET LUV 55A 6 174 6 308 6 64 I REV 6 82
