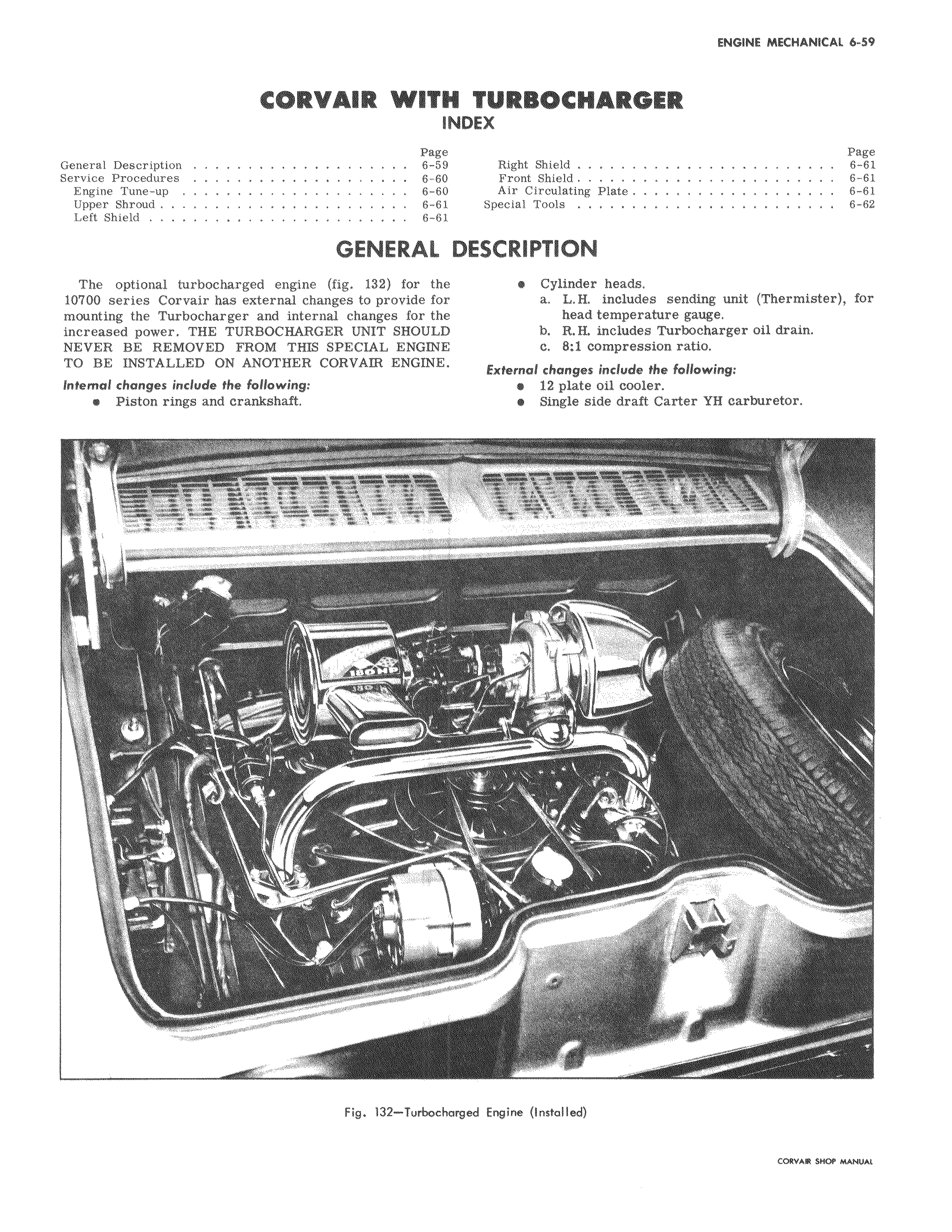

CORVAiR VI ITN It Page General Description 6 59 Service Procedures 6 60 Engine Tune up 6 60 Upper Shroud 6 61 Left Shield 6 61 GENERALI The optional turbocharged engine fig 132 for the 10700 series Corvair has external changes to provide for mounting the Turbocharger and internal changes for the increased power THE TURBOCHARGER UNIT SHOULD NEVER BE REMOVED FROM THIS SPECIAL ENGINE TO BE INSTALLED ON ANOTHER CORVAIR ENGINE Intempl changes include the following e Piston rings and crankshaft A Fig 132 Tvrbocha I TURBOCHARGER IDEX Page Right Shield 6 61 Front Shield 6 61 Air Circulating Plate 6 61 Special Tools 6 62 DESCRIPTION Cylinder heads a L H includes sending unit Thermister for head temperature gauge b R H includes Turbocharger oil drain c 8 1 compression ratio External changes include the following 12 plate oil cooler Single side draft Carter YH carburetor If l S h rged Engine Installed CpINAR SIIOr MANUAL
