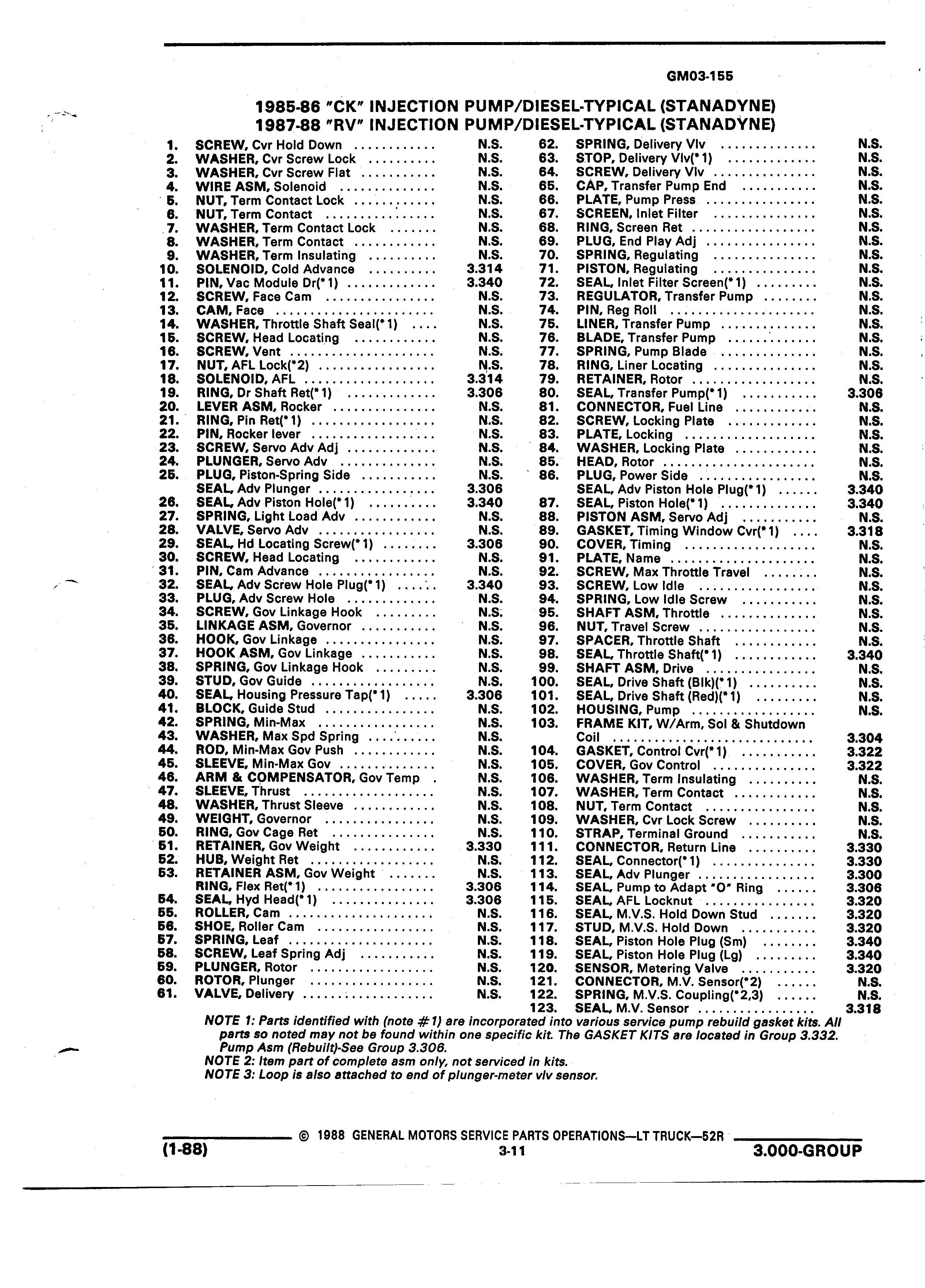

GM03 1 55 A 1985 86 CK INJECTION PUMP DIESEL TYPICAL STANADYNE 1 987 88 RV INJECTION PUMP DIESEL TYPICAL STANADYNE 1 SCREW Cvr Hold Down N S 62 SPRING Delivery Vlv N S A 2 WASHER Cvr Screw Lock N S 63 STOP Delivery Vlv 1 N S 3 WASHER Cvr Screw Flat N S 64 SCREW Delivery Vlv N S 4 WIRE ASM Solenoid N S 65 CAP Transfer Pump End N S 6 NUT Term Contact Lock N S 66 PLATE Pump Press N S I 6 NUT Term Contact Z N S 67 SCREEN Inlet Filter N S 7 WASHER Term Contact Lock N S 68 RING Screen Ret N S 8 WASHER Term Contact N S 69 PLUG End Play Adj N S 9 WASHER Term insulating N S 70 SPRING Regulating N S 10 SOLENOID Cold Advance 3 314 71 PISTON Regulating N S 1 1 PIN Vac Module Dr 1 3 340 72 SEAL Inlet Filter Screen 1 N S 12 SCREW Face Cam N S 73 REGULATOR Transfer Pump N S 13 CAM Face N S 74 PIN Reg Roll N S V 14 WASHER Throttle Shaft Seal 1 N S 75 LINER Transfer Pump N S 15 SCREW Head Locating N S 76 BLADE Transfer Pump N S 16 SCREW Vent N S 77 SPRING Pump Blade N S 17 NUT AFL Lock 2 N S 78 RING Liner Locating N S 18 SOLENOID AFL 3 314 79 RETAINER Rotor N S S 19 RING Dr Shaft Ret 1 3 306 80 SEAL Transfer Pump 1 3 306 20 LEVER ASM Rocker N S 81 CONNECTOR Fuel Line N S 21 RING Pin Ret 1 N S 82 SCREW Locking Plate N S 22 PIN Rocker lever N S 83 PLATE Locking N S 23 SCREW Servo Adv Adj N S 84 WASHER Locking Plate N S 24 PLUNGER Servo Adv N S 85 HEAD Rotor N S 25 PLUG Piston Spring Side N S 86 PLUG Power Side N S SEAL Adv Plunger 3 306 SEAL Adv Piston Hole Plug 1 3 340 26 SEAL Adv Piston HoIe 1 3 340 87 SEAL Piston HoIe 1 3 340 27 SPRING Light Load Adv N S 88 PISTON ASM Servo Adj N S 28 VALVE Servo Adv N S 89 GASKET Timing Window Cvr 1 3 318 29 SEAL Hd Locating Screw 1 3 306 90 COVER Timing N S 30 SCREW Head Locating N S 91 PLATE Name N S 31 PIN Cam Advance N S 92 SCREW Max Throttle Travel N S r 32 SEAL Adv Screw Hole Plug 1 3 340 93 SCREW Low Idle N S 33 PLUG Adv Screw Hole N S 94 SPRING Low Idle Screw N S 34 SCREW Gov Linkage Hook N S 95 SHAFT ASM Throttle N S 35 LINKAGE ASM Governor N S 96 NUT Travel Screw N S 36 HOOK Gov Linkage N S 97 SPACER Throttle Shaft N S 3 37 HOOK ASM Gov Linkage N S 98 SEAL Throttle Shaft 1 3 340 38 SPRING Gov Linkage Hook N S 99 SHAFT ASM Drive N S 39 STUD Gov Guide N S 100 SEAL Drive Shaft Blk 1 N S 40 SEAL Housing Pressure Tap 1 3 306 101 SEAL Drive Shaft Red 1 N S 41 BLOCK Guide Stud N S 102 HOUSING Pump N S 42 SPRING Min Max N S 103 FRAME KIT W Arm Sol Shutdown 43 WASHER Max Spd Spring N S Coil 3 304 44 ROD Min Max Gov Push N S 104 GASKET Control Cvr 1 3 322 45 SLEEVE Min Max Gov N S 105 COVER Gov Control 3 322 46 ARM COMPENSATOR Gov Temp N S 106 WASHER Term insulating N S 47 SLEEVE Thrust N S 107 WASHER Term Contact N S 48 WASHER Thrust Sleeve N S 108 NUT Term Contact N S 49 WEIGHT Governor N S 109 WASHER Cvr Lock Screw N S 60 RING Gov Cage Ret N S 110 STRAP Terminal Ground N S 61 RETAINER Gov Weight 3 330 111 CONNECTOR Return Line 3 330 62 HUB Weight Ret N S 112 SEAL Connector 1 3 330 63 RETAINER ASM Gov Weight N S 113 SEAL Adv Plunger 3 300 RING Flex Ret 1 3 306 114 SEAL Pump to Adapt O Ring 3 306 54 SEAL Hyd Head 1 3 306 115 SEAL AFL Locknut 3 320 65 ROLLER Cam N S 116 SEAL M V S Hold Down Stud 3 320 66 SHOE Roller Cam N S 117 STUD M V S Hold Down 3 320 67 SPRING Leaf N S 118 SEAL Piston Hole Plug Sm 3 340 68 SCREW Leaf Spring Adj N S 119 SEAL Piston Hole Plug Lg 3 340 69 PLUNGER Rotor N S 120 SENSOR Metering Valve 3 320 60 ROTOR Plunger N S 121 CONNECTOR M V Sensor 2 N S 61 VALVE Delivery N S 122 SPRING M V S Coupling 2 3 N S 123 SEAL M V Sensor 3 318 NOTE 1 Parts identified with note 1 are incorporated into various senrice pump rebuild gasket kits All parts so noted may not be found within one specific kit The GASKET KITS are located in Group 3 332 Pump Asm Rebuilt See Group 3 306 NOTE 2 Item part of complete asm only not senriced in kits NOTE 3 Loop is also attached to end of plunger meter vlv senson 1988 GENERAL MOTORS SERVICE PARTS OPERATlONS LT TRUCK 52R 1 88 l 3 11 3 000 GROUP
