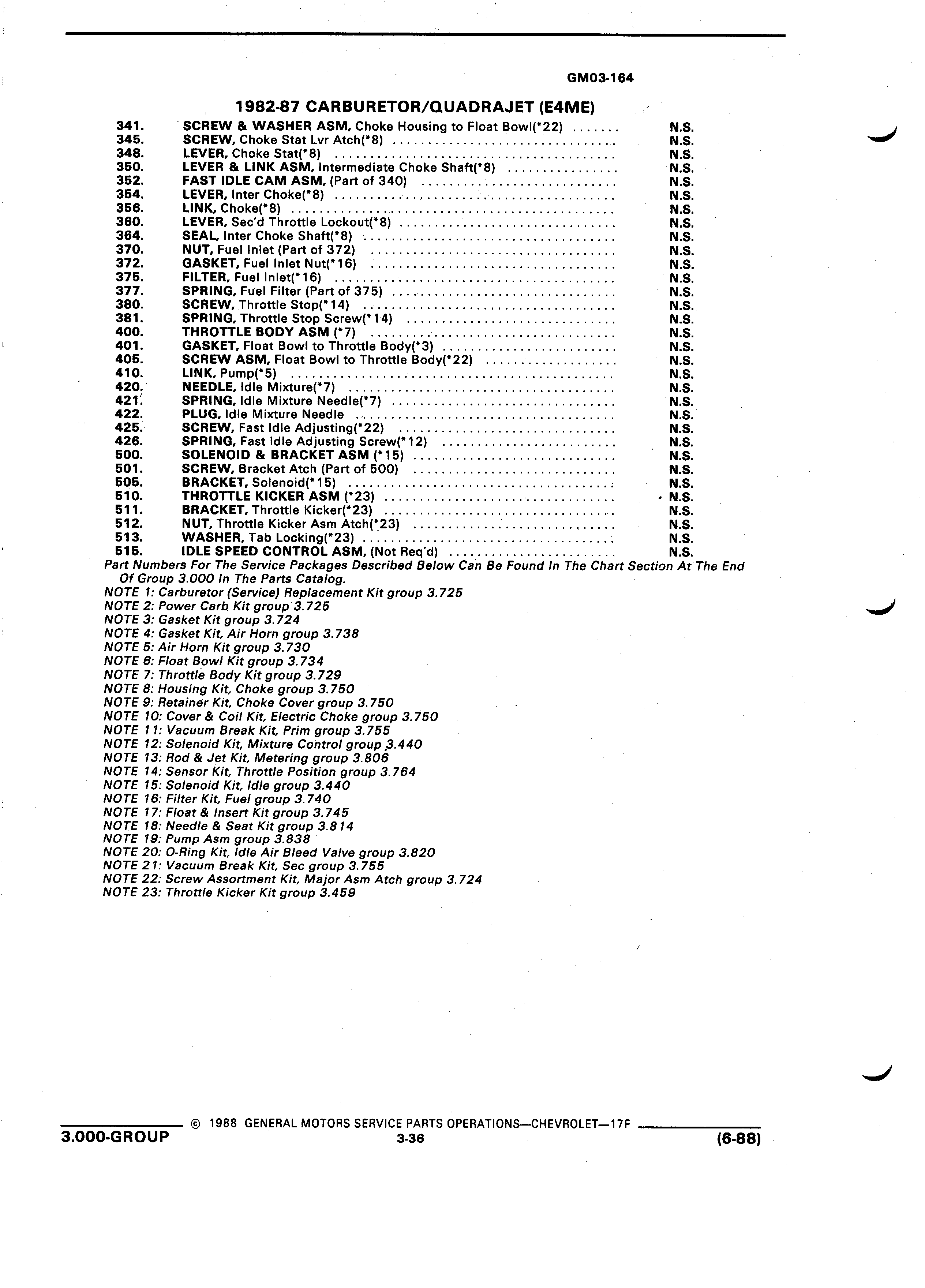

GM03 164 1982 87 CARBURETOR OUADRAJET E4ME 341 SCREW WASHER ASM Choke Housing to Float Bow 22 N S 345 SCREW Choke Stat Lvr Atch 8 N S 348 LEVER Choke Stat 8 N S 350 LEVER LINK ASM Intermediate Choke Shaft 8 N S 352 FAST IDLE CAM ASM Part of 340 N S 354 LEVER Inter Choke 8 N S 356 LINK Choke 8 N S 360 LEVER Sec d Throttle Lock0ut 8 N S 364 SEAL Inter Choke Shaft 8 N S 370 NUT Fuel Inlet Part of 372 N S 372 GASKET Fuel Inlet Nut 16 N S 375 FILTER Fuel InIet 16 Q N S 377 SPRING Fuel Filter Part of 375 N S 380 SCREW Throttle Stop 14 N S 381 SPRING Throttle Stop Screw 14 N S 400 THROTTLE BODY ASM 7 N S 401 GASKET Float Bowl to Throttle Body 3 N S 405 SCREW ASM Float Bowl to Throttle Body 22 N S 410 LINK Pump 5 N S A 420 NEEDLE Idle Mixture 7 N S 421I SPRING Idle Mixture NeedIe 7 N S 422 PLUG Idle Mixture Needle N S I 425 SCREW Fast Idle Adjusting 22 N S 426 SPRING Fast Idle Adjusting Screw 12 N S 500 SOLENOID BRACKET ASM 15 N S 501 SCREW Bracket Atch Part of 500 N S 505 BRACKET Solenoid 15 N S 510 THROTTLE KICKER ASM 23 N S 511 BRACKET Throttle Kicker 23 N S 512 NUT Throttle Kicker Asm Atch f23 N S 513 WASHER Tab Locking 23 N S 515 IDLE SPEED CONTROL ASM Not Req d N S Part Numbers For The Service Packages Described Below Can Be Found ln The Chart Section At The End Of Group 3 000 ln The Parts Catalog A NOTE 1 Carburetor Service Replacement Kit group 3 725 NOTE 2 Power Carb Kit group 3 725 Q NOTE 3 Gasket Kit group 3 724 NOTE 4 Gasket Kit Air Horn group 3 738 NOTE 5 Air Horn Kit group 3 730 NOTE 6 Float Bowl Kit group 3 734 NOTE 7 Throttle Body Kit group 3 729 NOTE 8 Housing Kit Choke group 3 750 NOTE 9 Retainer Kit Choke Cover group 3 750 NOTE 10 Cover Coil Kit Electric Choke group 3 750 NOTE 11 Vacuum Break Kit Prim group 3 755 NOTE 12 Solenoid Kit Mixture Control group 3 440 NOTE 13 Rod Jet Kit Metering group 3 806 NOTE 14 Sensor Kit Throttle Position group 3 764 NOTE 15 Solenoid Kit Idle group 3 440 NOTE 16 Filter Kit Fuel group 3 740 NOTE 17 Float Insert Kit group 3 745 NOTE 18 Needle Seat Kit group 3 814 NOTE 19 Pump Asm group 3 838 NOTE 20 O Ring Kit Idle Air Bleed Valve group 3 820 NOTE 21 Vacuum Break Kit Sec group 3 755 NOTE 22 Screw Assortment Kit Major Asm Atch group 3 724 NOTE 23 Throttle Kicker Kit group 3 459 J 1988 GENERAL MOTORS SERVICE PARTS OPERATIONS CHEVROLET 17F 3 000 GROUP a ec 6 88
