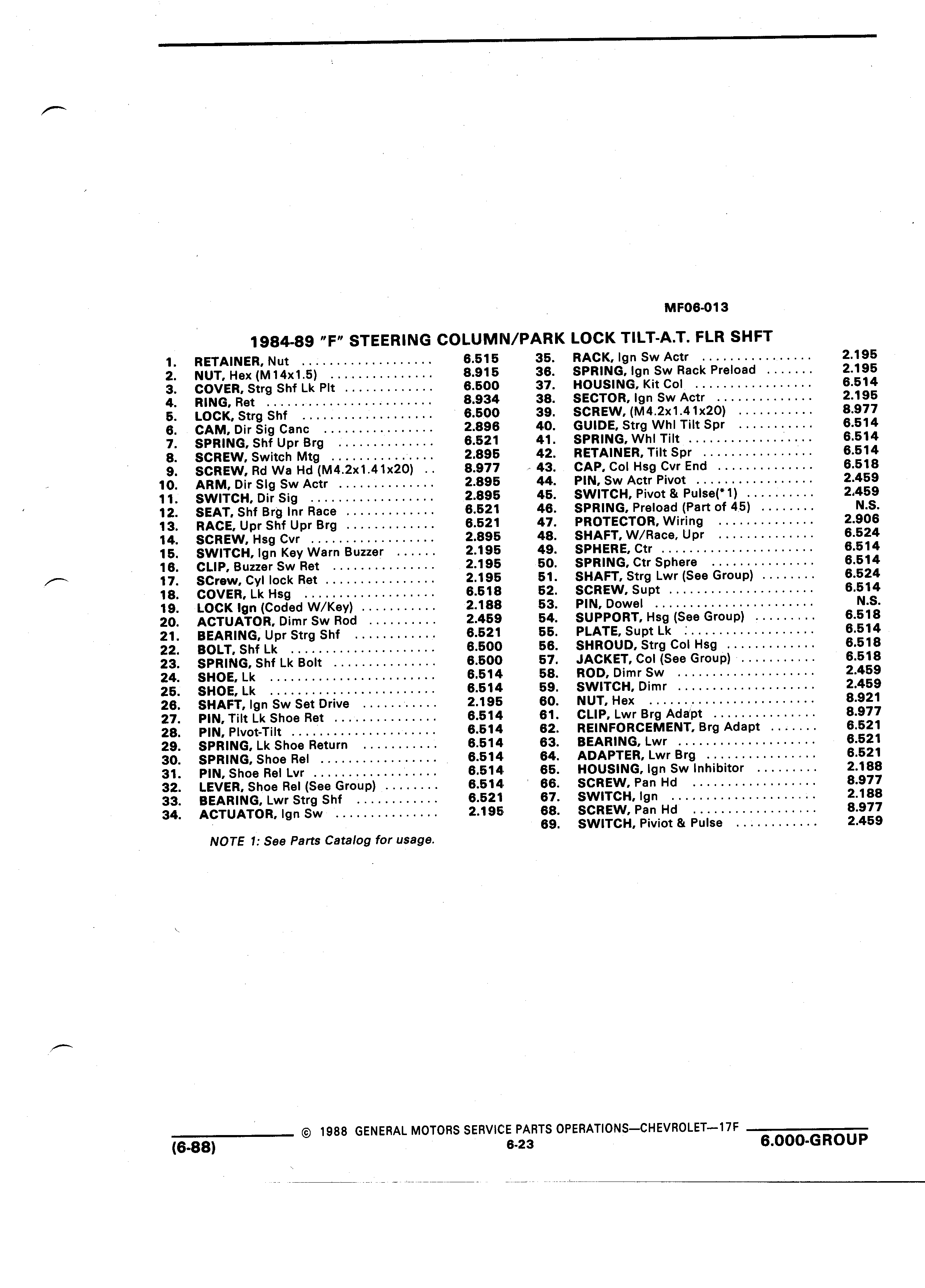

i i i MF06 013 1984 89 F STEERING COLUMN PARK LOCK TILT A T FLR SHFT 1 RETAINER Nut 6 515 35 RACK Ign Sw Actr 2 195 2 NUT Hex M14x1 5 8 915 36 SPRING Ign Sw Rack Preload 2 195 3 COVER Strg Shf Lk Plt 6 500 37 HOUSING Kit Col 6 514 4 RING Ret 8 934 38 SECTOR Ign Sw Actr 2 195 5 LOCK Strg Shf 6 500 39 SCREW M4 2x1 41x20 8 977 6 CAM Dir Sig Cane 2 896 40 GUIDE Strg Whl Tilt Spr 6 514 7 SPRING Shf Upr Brg 6 521 41 SPRING Whl Tilt 6 514 A 8 SCREW Switch Mtg 2 895 42 RETAINER Tilt Spr 6 514 9 SCREW Rd We Hd M4 2x1 41x20 8 977 43 CAP Col Hsg Cvr End 6 518 A 10 ARM Dir Slg Sw Actr 2 895 44 PIN Sw Actr Pivot 2 459 11 SWITCH Dir Sig 2 895 45 SWITCH Pivot Pulse 1 2 459 12 SEAT Shf Brg lnr Race 6 521 46 SPRING Preload Part of 45 N S 13 RACE Upr Shf Upr Brg 6 521 47 PROTECTOR Wiring 2 906 14 SCREW Hsg Cvr 2 895 48 SHAFT W Race Upr 6 524 15 SWITCH Ign Key Warn Buzzer 2 195 49 SPHERE Ctr 6 514 16 CLIP Buzzer Sw Ret 2 195 50 SPRING Ctr Sphere 6 514 17 SCrew Cyl lock Ret 2 195 51 SHAFT Strg Lwr See Group 6 524 18 COVER Lk Hsg 6 518 52 SCREW Supt 6 514 19 LOCK Ign Coded W Key 2 188 53 PIN Dowel N S 20 ACTUATOR Dimr Sw Rod 2 459 54 SUPPORT Hsg See Group 6 518 21 BEARING Upr Strg Shf 6 521 55 PLATE Supt Lk I 6 514 22 BOLT Shf Lk 6 500 56 SHROUD Strg Col Hsg 6 518 23 SPRING Shf Lk Bolt 6 500 57 JACKET Col See Group 6 518 24 SHOE Lk 6 514 58 ROD Dimr Sw 2 459 25 SHOE Lk 6 514 59 SWITCH Dimr 2 459 26 SHAFT Ign Sw Set Drive 2 195 60 NUT Hex 8 921 27 PIN Tilt Lk Shoe Ret 6 514 61 CLIP Lwr Brg Ada pt 8 977 28 PIN Plvot Tilt 6 514 62 REINFORCEMENT Brg Adapt 6 521 29 SPRING Lk Shoe Return 6 514 63 BEARING Lwr 6 521 30 SPRING Shoe Rel 6 514 64 ADAPTER Lwr Brg 6 521 31 PIN Shoe Rel Lvr 6 514 65 HOUSING Ign Sw Inhibitor 2 188 32 LEVER Shoe Rel See Group 6 514 66 SCREW Pan Hd 8 977 33 BEARING Lwr Strg Shf 6 521 67 SWITCH Ign 2 188 34 ACTUATOR Ign Sw 2 195 68 SCREW Pan Hd 8 977 69 SWITCH Piviot Pulse 2 459 NOTE 1 See Parts Catalog for usage 1 1988 GENERAL MOTORS SERVICE PARTS OPERATIONS CHEVROLET 17F 6 88 e ze 6 000 GROUP
