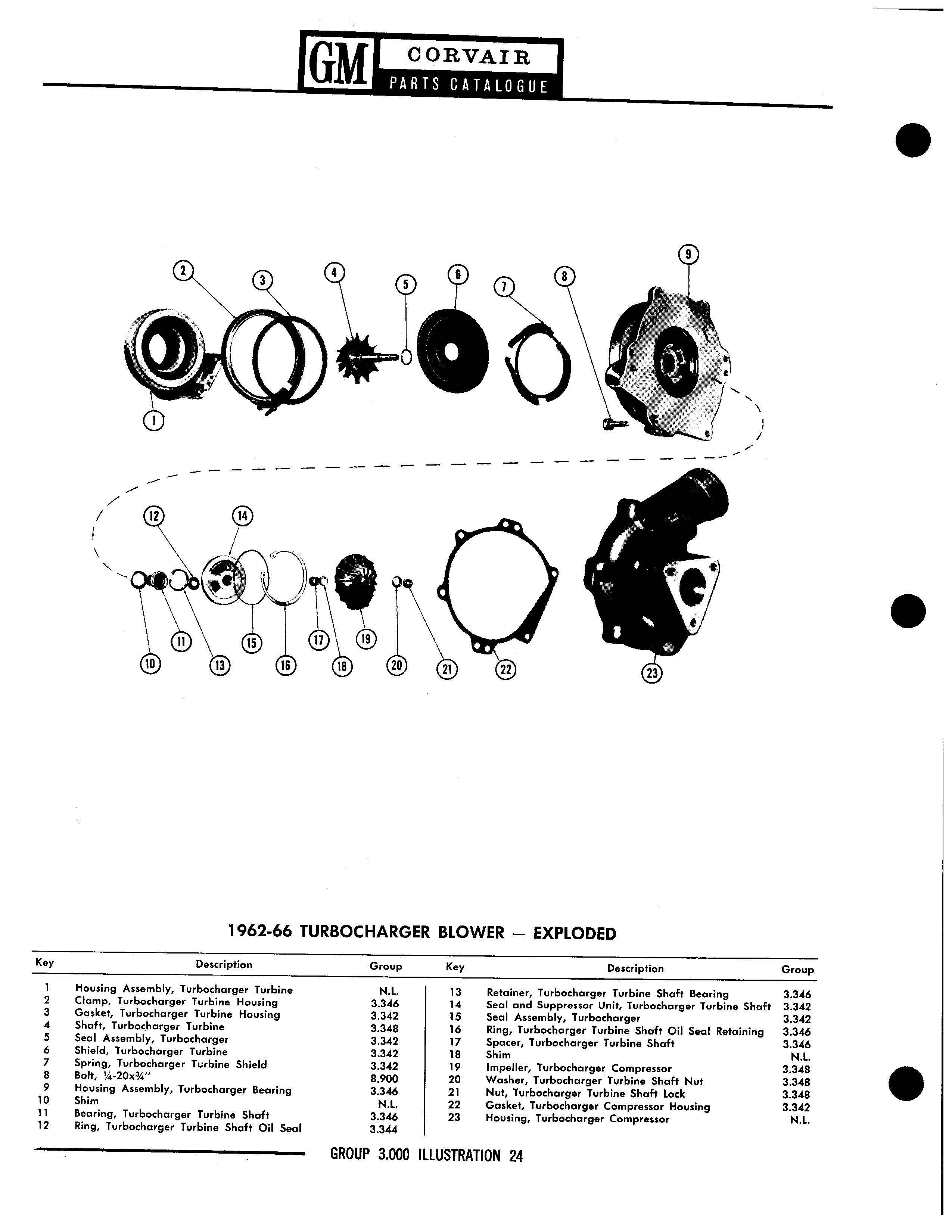

GM C ORVAI R v i 0 2 3 4 5 6 1 el r w 1 e I i r I 12 14 11 15 17 19 10 13 16 18 20 21 22 23 1962 66 TURBOCHARGER BLOWER EXPLODED Key Description Group Key Description Group 1 Housing Assembly Turbocharger Turbine N L 13 Retainer Turbocharger Turbine Shaft Bearing 3 346 2 Clamp Turbocharger Turbine Housing 3 346 14 Seal and uppressor Unit Turbocharger Turbine Shaft 3 342 3 Gasket Turbocharger Turbine Housing 3 342 15 Seal Assembly Turbocharger 3 342 4 Shaft Turbocharger Turbine 3 348 16 Ring Turbocharger Turbine Shaft Oil Seal Retaining 3 346 5 Seal Assembly Turbocharger 3 342 17 Spacer Turbocharger Turbine Shaft 3 346 6 Shield Turbocharger Turbine 3 342 18 Shim N L 7 Spring Turbocharger Turbine Shield 3 342 19 Impeller Turbocharger Compressor 3 348 8 Bolt 1 a 20x3 a 8 900 20 Washer Turbocharger Turbine Shaft Nut 3 348 9 Housing Assembly Turbocharger Bearing 3 346 21 Nut Turbocharger Turbine Shaft Lock 3 348 10 Shim N L 22 Gasket Turbocharger Compressor Housing 3 342 11 Bearing Turbocharger Turbine Shaft 3 346 23 Housing Turbocharger Compressor N L 12 Ring Turbocharger Turbine Shaft Oil Seal 3 344
