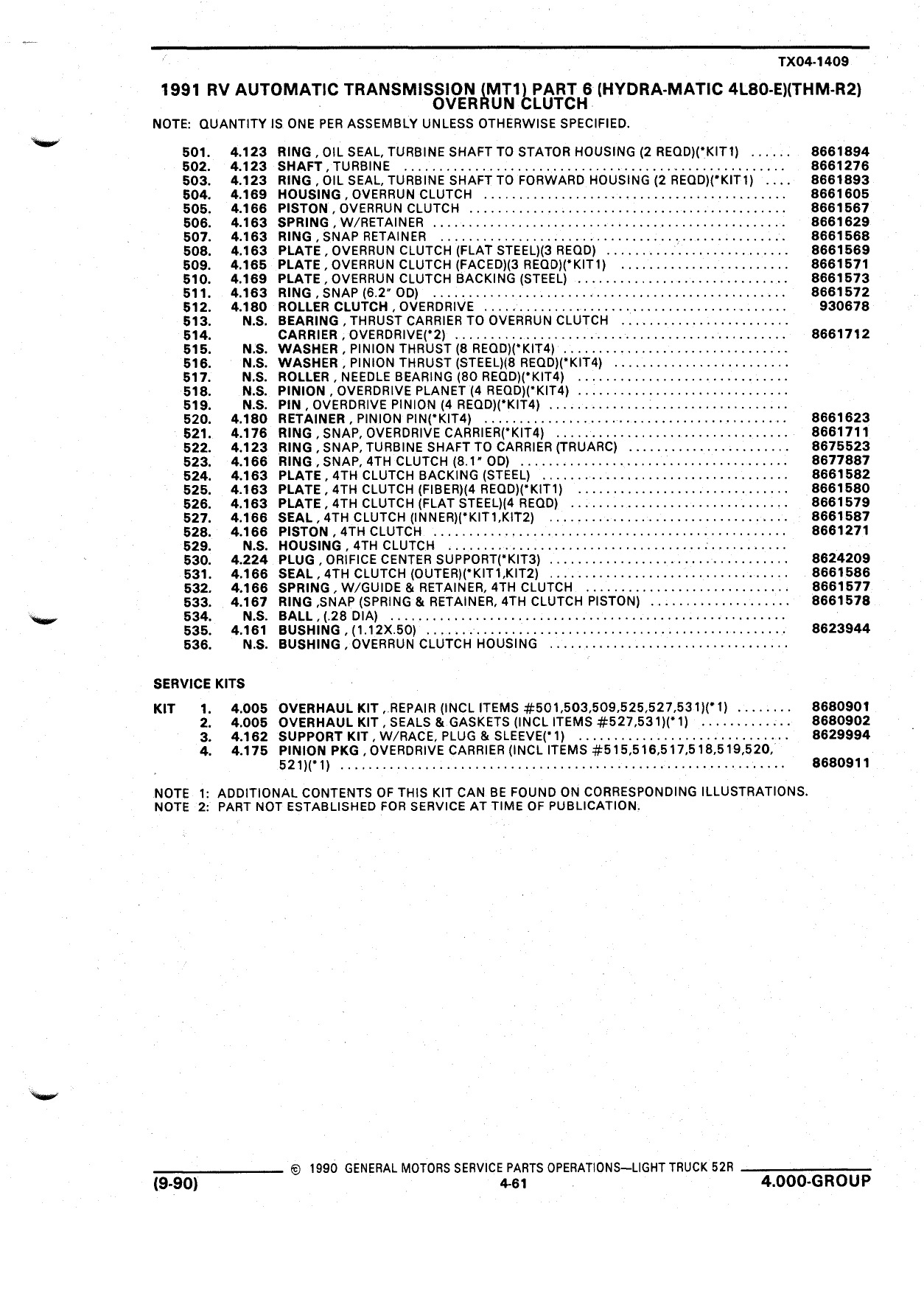

TX04 1409 1991 RV AUTOMATIC TRANSMISSION MT12 PART 6 HYDRA MATIC 4L80 E THM R2 OVER UN LUTCH NOTE OUANTITY IS ONE PER ASSEMBLY UNLESS OTHERWISE SPECIFIED 501 4 123 RING OIL SEAL TURBINE SHAFT T0 STATOR HOUSING Z REOD K TI 8661894 502 4 123 SHAFT TURBINE 8661276 503 4 123 RING OIL SEAL TURBINE SHAFT TO FORWARD HOUSING 2 REOD I ITI 8661893 504 4 169 HOUSING OVERRUN CLUTCH 8661605 505 4 166 PISTON OVERRUN CLUTCH 8661567 506 4 163 SPRING W RETAINER 8661629 507 4 163 RING SNAP RETAINER 8661568 508 4 163 PLATE OVERRUN CLUTCH FLAT STEEL 3 REOD 8661569 509 4 165 PLATE OVERRUN CLUTCH FACED 3 REOD KITI 8661571 510 4 169 PLATE OVERRUN CLUTCH BACKING STEEL 8661573 511 4 163 RING SNAP 6 2 OD 8661572 512 4 180 ROLLER CLUTCH OVERDRIVE 930678 513 N S BEARING THRUST CARRIER TO OVERRUN CLUTCH 514 CARRIER OVERDRIVE 2 8661712 515 N S WASHER PINION THRUST 8 REOD I IT4 516 N S WASHER PINION THRUST STEEL 8 REOD KIT4 517 N S ROLLER NEEDLE BEARING 80 REOD I IT4 518 N S PINION OVERDRIVE PLANET 4 REQD KIT4 519 N S PIN OVERDRIVE PINION 4 FIEOD KlT4 520 4 180 RETAINER PINION PlN KIT4 8661623 521 4 176 RING SNAP OVERDRIVE CARRIER I T4 8661711 522 4 123 RING SNAP TURBINE SHAFT TO CARRIER TRUARC 8675523 523 4 166 RING SNAP 4TH CLUTCH 8 I OD 8677887 524 4 163 PLATE 4TH CLUTCH BACKING STEEL 8661582 525 4 163 PLATE 4TH CLUTCH FIBER 4 REOD I IT1 8661580 526 4 163 PLATE 4TH CLUTCH FLAT STEEL 4 REOD 8661579 527 4 166 SEAL 4TH CLUTCH INN ER I IT1 KIT2 8661587 528 4 166 PISTON 4TH CLUTCH 8661271 529 N S HOUSING 4TH CLUTCH 530 4 224 PLUG ORIFICE CENTER SUPPORT KIT3 8624209 531 4 166 SEAL 4TH CLUTCH OUTER KIT I KITZ 866I586 532 4 166 SPRING W GUIDE 84 RETAINER 4TH CLUTCH 6661577 533 4 167 RING 5NAP SPRING RETAINER 4TH CLUTCH PISTON 8661576 4 534 N S BALL 28 DIA 535 4 161 RUSHING I I2X 50 8623944 536 N S RUSHING OVERRUN CLUTCH HOUSING SERVICE KITS KIT 1 4 005 OVERHAUL KIT REPAIR INCL ITEMS 50I 503 509 525 527 531 I 8680901 2 4 005 OVERHAUL KIT SEALS GASKETS INCL ITEMS 527 531 I 8680902 3 4 162 SUPPORT KIT W RACE PLUG SLEEVE 1 8629994 4 4 175 PINION PKG OVERDRIVE CARRIER INCL ITEMS 515 516 5I7 518 519 520 52 I 1 8680911 NOTE I ADDITIONAL CONTENTS OF THIS KIT CAN BE FOUND ON CORRESPONDING ILLUSTRATIONS NOTE 2 PART NOT ESTABLISHED FOR SERVICE AT TIME OF PUBLICATION Q 7 Q 1990 GENERAL MOTORS SERVICE PARTS 0PERA I IONS L GHT TRUCK 528 9 90 s1 4 000 6ROUP
