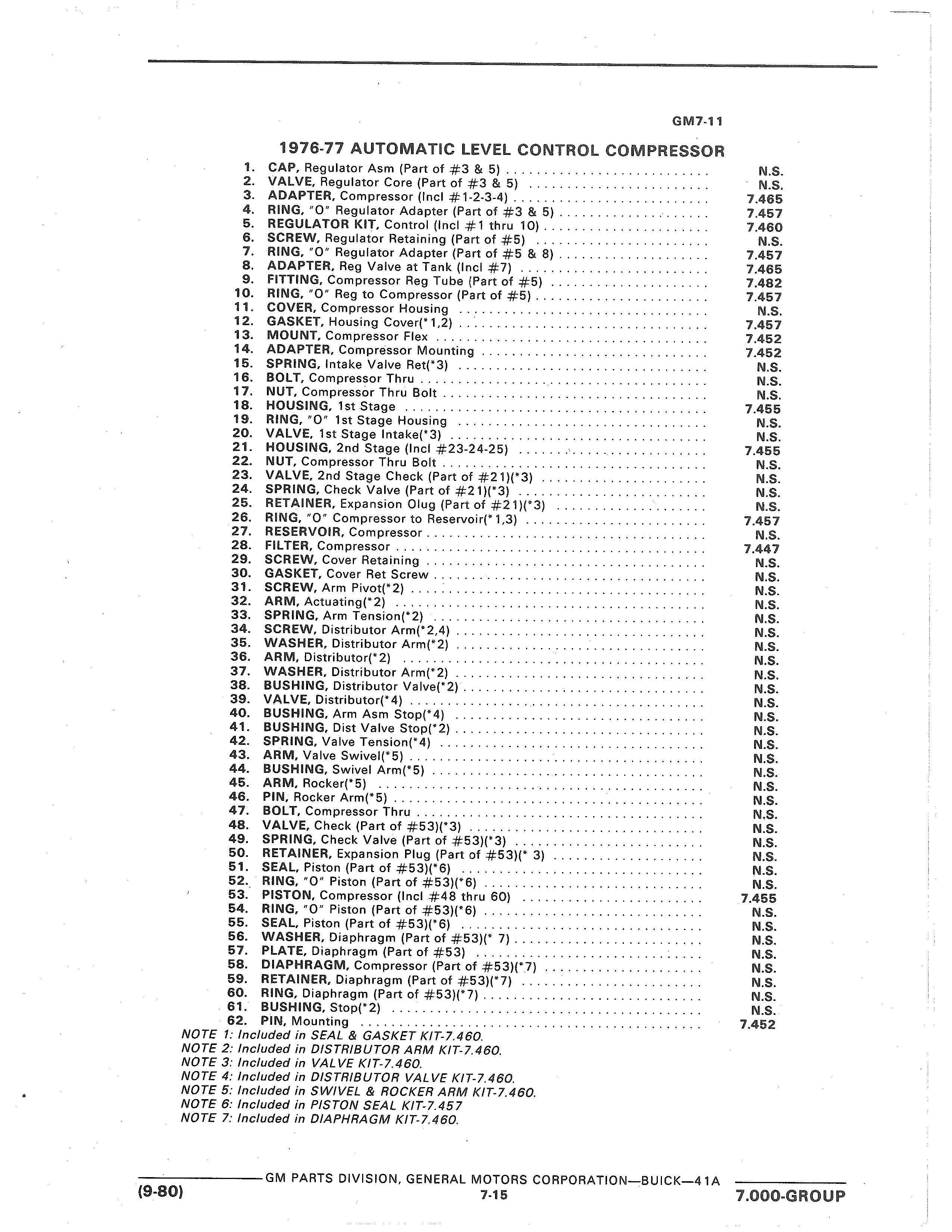

GM7 11 1976 77 AUTOMATIC LEVEL CONTROL COMPRESSOR J 1 CAP Regulator Asm Part of 3 5 N S 2 VALVE Regulator Core Part of 3 5 N S 3 ADAPTER Compressor Incl 1 2 3 4 7 465 4 RING O Regulator Adapter Part of 3 5 7 457 g 5 REGULATOR KIT Control Incl 1 thru 10 7 460 I 6 SCREW Regulator Retaining Part of 5 N S 7 RING O Regulator Adapter Part of 5 8 7 457 8 ADAPTER Reg Valve at Tank Incl 7 7 465 9 FITTING Compressor Reg Tube Part of 5 7 482 10 RING 0 Reg to Compressor Part of 5 7 457 3 11 COVER Compressor Housing N S I 12 GASKET Housing Cover 1 2 7 457 13 MOUNT Compressor Flex 7 452 r 14 ADAPTER Compressor Mounting 7 452 15 SPRING Intake Valve Ret 3 N S 16 BOLT Compressor Thru N S 17 NUT Compressor Thru Bolt N S I 18 HOUSING lst Stage 7 455 I i 19 RING 0 1st Stage Housing N S 20 VALVE 1st Stage Intake 3 N S 21 HOUSING 2nd Stage Incl 23 24 25 7 455 22 NUT Compressor Thru Bolt N S I 23 VALVE 2nd Stage Check Part of 21 3 N S I 24 SPRING Check Valve Part of 21 3 N S 25 RETAINER Expansion Olug Part of 21 3 N S 26 RING O Compressor to Reservoir 1 3 7 457 27 RESERVOIR Compressor N S 28 FILTER Compressor 7 447 29 SCREW Cover Retaining N S g 30 GASKET Cover Ret Screw N S 31 SCREW Arm Pivot 2 Q N S 32 ARM Actuating 2 N S 33 SPRING Arm Tension 2 N S I 34 SCREW Distributor Arm 2 4 N S 35 WASHER Distributor Arm 2 N S 36 ARM Distributor 2 N S 37 WASHER Distributor Arm 2 N S 38 BUSHING Distributor VaIve 2 N S 39 VALVE Distributor 4 N S 40 BUSHING Arm Asm Stop 4 N S 41 BUSHING Dist Valve Stop 2 N S Q 42 SPRING Valve Tension 4 N S 43 ARM Valve SwiveI 5 N S 44 BUSHING Swivel Arm 5 N S 45 ARM Rocker 5 N S 46 PIN Rocker Arm 5 N S 47 BOLT Compressor Thru N S 48 VALVE Check Part of 53 3 N S 49 SPRING Check Valve Part of 53 3 N S I 50 RETAINER Expansion Plug Part of 53 3 N S 51 SEAL Piston Part of 53 6 N S I 52 RING O Piston Part of 53 6 N S I 53 PISTON Compressor Incl 48 thru 60 7 455 54 RING O Piston Part of 53 6 N S 55 SEAL Piston Part of 53 6 N S 56 WASHER Diaphragm Part of 53 7 N S 57 PLATE Diaphragm Part of 53 L N S 58 DIAPHRAGM Compressor Part of 53 7 N S 59 RETAINER Diaphragm Part of 53 7 N S 60 RING Diaphragm Part of 53 7 N S 61 BUSHING Stop 2 N S 62 PIN Mounting 7 452 NOTE 7 Included in SEAL GASKET K T 7 460 NOTE 2 Included in DISTRIBUTOR ARM I T 7 460 NOTE 3 Included in VALVE K T 7 460 NOTE 4 Included in DISTRIBUTOR VALVE KIT 7 460 NOTE 5 Included in SWIVEL ROCKER ARM KlT 7 460 NOTE 6 Included in P STON SEAL KIT 7 457 NOTE 7 Included in D APHRAGM K T 7 460 GM PARTS DIVISION GENERAL MOTORS CORPORATlON BU CK 41A L 9 80 7 15 7 000 GROUP I
