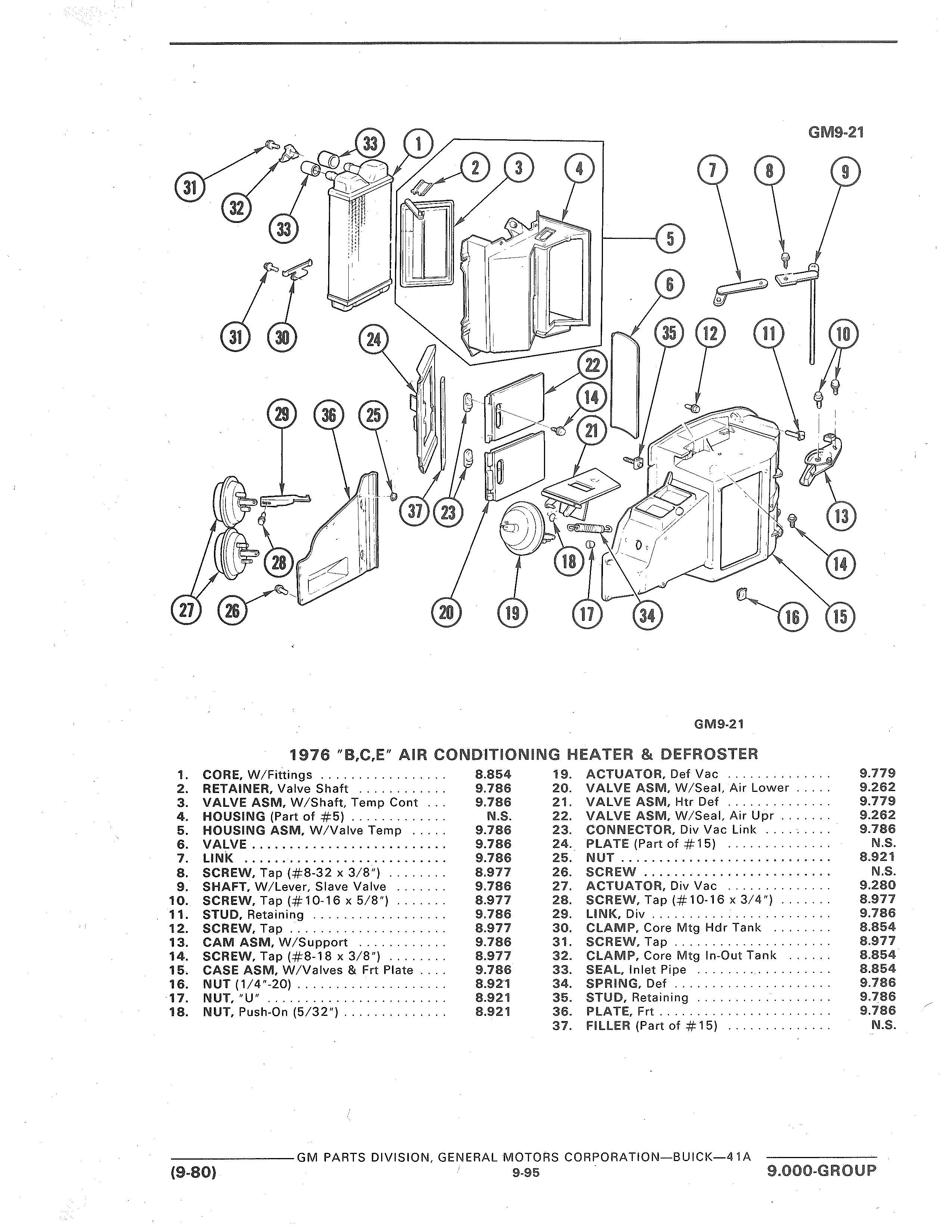

I 0 2 a aa 6 I I 9 5 Q Jn is I I B 9 Q R J pl as iz IQ in 9 9 il Q 9 V i V Ty i I I I i 4 J 4f ip i l I il A O Ii is V i w V A E L A 0 jk O I 4 ll I I Q IR Y l lg i r GM9 21 1976 B C E AIR CONDITIONING HEATER DEFROSTER 1 CORE W Fittings 8 854 19 ACTUATOR Def Vac 9 779 2 RETAINER Valve Shaft 9 786 20 VALVE ASM W Seal Air Lower 9 262 3 VALVE ASM W Shaft Temp Cont 9 786 21 VALVE ASM Htr Def 9 779 4 HOUSING Part of 5 N S 22 VALVE ASM W Seal Air Upr 9 262 5 HOUSING ASM W Valve Temp 9 786 23 CONNECTOR Div Vac Link 9 786 6 VALVE 9 786 24 PLATE Part 0f 15 N S 7 LINK 9 786 25 NUT 8 921 8 SCREW Tap 8 32 x 3 8 8 977 26 SCREW N S 9 SHAFT W Lever Slave Valve 9 786 27 ACTUATOR Div Vac 9 280 10 SCREW Tap 10 16 x 5 8 8 977 28 SCREW Tap 10 16 x 3 4 8 977 11 STUD Retaining 9 786 29 LINK Div 9 786 12 SCREW Tap 8 977 30 CLAMP Core I Itg Hdr Tank 8 854 13 CAM ASM W Support 9 786 31 SCREW Tap 8 977 14 SCREW Tap 8 18 x 3 8 8 977 32 CLAMP Core Itg In Out Tank 8 854 15 CASE ASM W Valves Frt Plate 9 786 33 SEAL Inlet Pipe 8 854 16 NUT 1 4 20 8 921 34 SPRING Def 9 786 V17 NUT U 8 921 35 STUD Retaining 9 786 K 18 NUT Push On 5 32 8 921 36 PLATE Frt 9 786 37 FILLER Part of 15 I GI PARTS DIVISION GENERAL MOTORS CORPORATION BU CI 41A 9 80 I 9 95 9 000 GROUP
