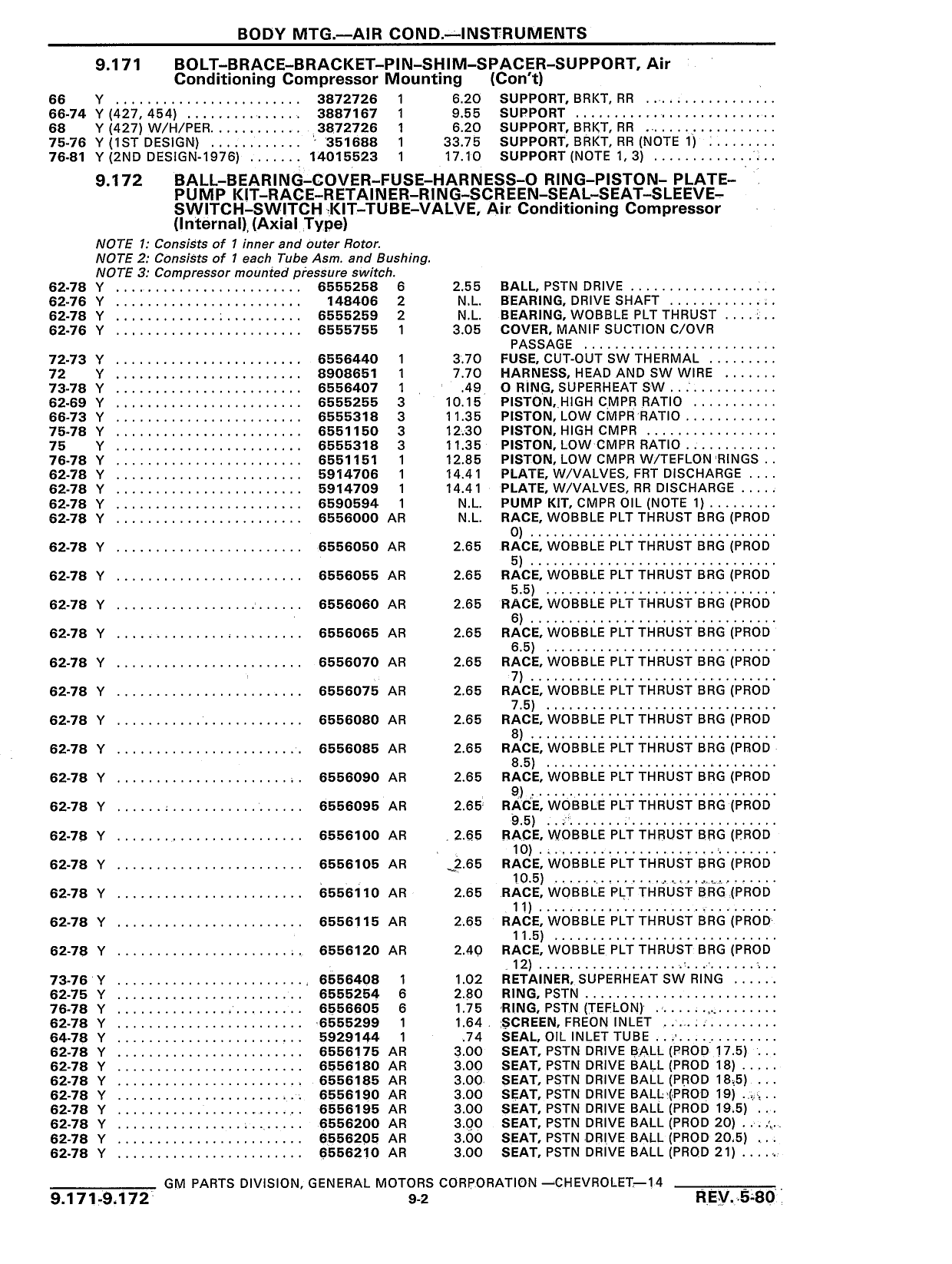

BODY MTG AIR COND INSTRUMENTS 9 171 BOLT BRACE BRACKET PIN SIjIIM SPACER SUPPORT Air Condmunmg Compressor Mountmg C0n tI 66 Y 4 3872726 1 6 20 SUPPORT BRKT RR 4 66 74 Y 427 454 4 4 3887167 1 9 55 SUPPORT 44 44 4 68 Y 427 W H PER 4 4 3872726 1 6 20 SUPPORT BRKT RR 75 76 Y IST DESIGN 4 4 351688 1 33 75 SUPPORT BRKT RR NOTE I 76 B1 Y 2ND DESIGN 1976 14015523 1 17 10 SUPPORT NOTE 1 3 9 172 BALL BEARING COVER FUSE HARNESS RING PISTON PLATE PUMP KIT RACE RETAINER RING SCREEN SEALgSEAT SLEEVE SWITCH SWITCH KIT TUBE VALVE Arr Condntnomng Compressor Internal Ax aI Type NOTE 7 Consists af 1 inner and outer Hotor NOTE 2 Consists of 1 each Tube Asm and Bushing NOTE 3 Compressor mounted pressure switch 62 78 Y 6555258 6 2 55 BALL PSTN DRIVE 62 76 Y 148406 2 N L BEARING DRIVE SHAFT 62 78 Y 6555259 2 N L BEARING WOBBLE PLT THRUST 62 76 Y 6555755 1 3 05 COVER MANIF SUCTION C OVR PASSAGE 72 73 Y 6556440 1 3 70 FUSE CUT OUT SW THERMAL 72 Y 8908651 1 7 70 HARNESS HEAD AND SW WIRE 73 78 Y 6556407 1 49 0 RING SLIPERHEAT SW 62 69 Y 6555255 3 10 15 PISTON HIGH CMPR RATIO 66 73 Y 6555318 3 11 35 PISTON LOW CMPR RATIO 75 78 Y 6551150 3 12 30 PISTON HIGH CMPR 75 Y 6555318 3 11 35 PISTON LOW CMPR RATIO 76 78 Y 6551151 1 12 85 PISTON LOW CNIPR W TEFLON RINGS 62 78 V 5914706 1 14 41 PLATE W VALVES FRT DISCHARGE 62 78 Y 5914709 1 14 41 PLATE W VALVES RR DISCHARGE 62 78 Y 6590594 1 N L PUMP KIT CMPR OIL NOTE 1 62 78 Y 6556000 AR N L RACE WOBBLE PLT THRUST BRG PROD 0 62 78 Y 6556050 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 5 62 78 Y 6556055 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 5 5 62 78 Y 6556060 AR 2 65 Rg CE WOBBLE PLT THRUST BRG PROD sms v ssssoas AR 2 65 nAce 1 1bH L Lf1IIHUe1 aIE i H6b 6 5 62 78 Y 6556070 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 7 62 78 Y 6556075 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 7 5 62 78 V 6556080 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 8 62 78 Y 6556085 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 8 5 62 78 Y 6556090 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 9 62 70 Y 6556095 AR 2 05 RACE WOBBLE FLT THRUST BRG PROD 9 5 62 78 Y 6556100 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD I0 62 78 Y 6556105 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 10 5 2 62 78 Y 6556110 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD I 1 62 78 Y 6556115 AR 2 65 RACE WOBBLE PLT THRUST BRG PROD 1 1 5 62 78 Y 6556120 AR 2 40 RACE WOBBLE PLT THRUST BRG PROD 12 73 76 Y 6556408 1 1 02 RETAINER SUPERHEAT SW RING 62 75 Y 6555254 6 2 80 RING PSTN 76 78 Y 6556605 6 1 75 RING PSTN TEFLON r 62 78 Y 6555299 I 1 64 SCREEN FREON INLET 64 78 Y 5929144 1 74 SEAL OIL INLET TUBE 62 78 Y 6556175 AR 3 00 SEAT PSTN DRIVE BALL PROD 17 5 62 78 Y 6556180 AR 3 00 SEAT PSTN DRIVE BALL PROD 18 62 78 Y 6556185 AR 3 00 SEAT PSTN DRIVE BALL PROD 18 5 62 78 Y 6556190 AR 3 00 SEAT PSTN DRIVE BALL PROD 19 62 78 V 6556195 AR 3 00 SEAT PSTN DRIVE BALL PROD 19 5 62 78 Y 6556200 AR 3 00 SEAT PSTN DRIVE BALL PROD 20 62 7B Y 6556205 AR 3 00 SEAT PSTN DRIVE BALL PROD 20 5 62 78 Y 6556210 AR 3 00 SEAT PSTN DRIVE BALL PROD 21 GM PARTS DIVISION GENERAL MOTORS CORPORATION C IEVROLET I4 9 1 71 9 172 s 2 RE 5 80
