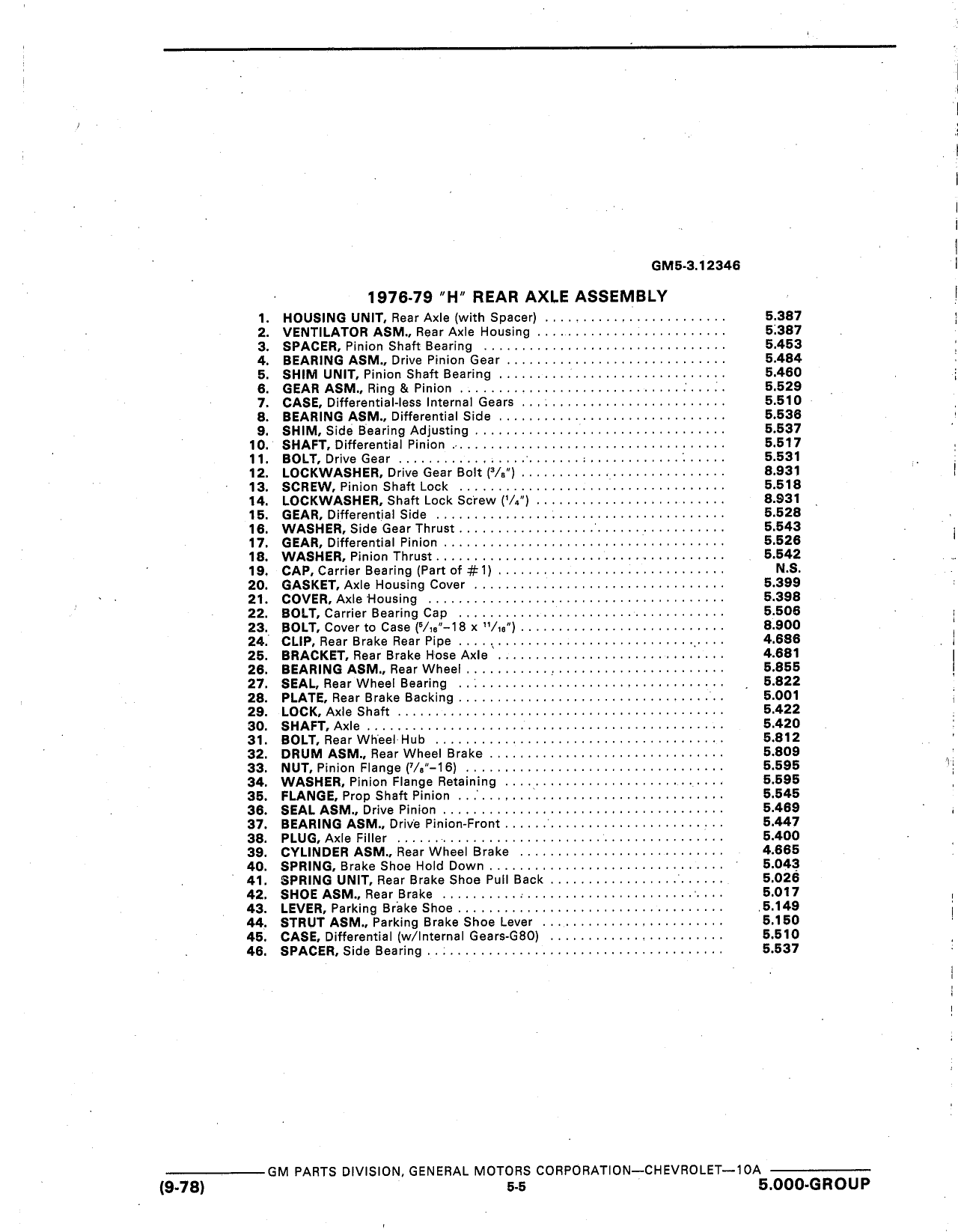

I I I I I I I I I GM5 3 12346 I 1976 79 H REAR AXLE ASSEMBLY I 1 HOUSING UNIT Rear Axle with Spacer 4 5 387 I 2 VENTILATOR ASM Rear Axle Housing 5 387 3 SPACER Plnion Shaft Bearing 5 453 j 4 BEARING ASM Drive Pinion Gear 5 484 I 5 SHIM UNIT Pinion Shaft Bearing 5 480 6 GEAR ASM Ring Pinion 5 529 7 CASE Differential less Internal Gears 5 510 8 BEARING ASM Differential Side 5 536 9 SHIM Side Bearing Adjusting 5 537 10 SHAFT Differential Pinion 5 517 11 BOLT Drive Geer l 5 531 I2 LOCKWASHER Drive Geer Bolt 8 931 I 13 SCREW Pinion Shaft Lock 5 518 14 LOCKWASHER Shaft Lock Screw I 8 931 15 GEAR Differential Side 5 528 16 WASHER Side Gear Thrust 5 543 I 17 GEAR Differential Pinion 5 526 18 WASHER Pinion Thrust 5 542 19 CAP Carrier Bearing Part of 1 N S 20 GASKET Axle Housing Cover 5 399 21 COVER Axle Housing 5 398 22 BOLT Carrier Bearing Cap 5 506 I 23 BOLT Cover to Case B x N 8 900 24 CLIP Rear Brake Rear Pipe 4 4 686 I 25 BRACKET Rear Brake Hose Axle 4 681 I 26 BEARING ASM Rear Wheel 5 855 27 SEAL Rear Wheel Bearing 5 822 28 PLATE Rear Brake Backing 5 001 29 LOCK Axle Shaft 5 422 30 SHAFT Axle 5 420 31 BOLT Rear Wheel Hub 5 8I2 32 DRUM ASM Rear Wheel Brake 5 809 33 NUT Pinion Flange 16 5 505 I 34 WASHER Pinion Flange Retaining 5 595 35 FLANGE Prop Shaft Pinion 5 545 36 SEAL ASM Drive Plnlon 5 409 37 BEARING ASM Drive Pinion Front 5 447 38 PLUG Axle Filler 5 400 39 CYLINDER ASM Rear Wheel Brake 4 655 40 SPRING Brake Shea Hold Down 5 043 41 SPRING UNIT Rear Brake Shoe Pull Back l 5 026 42 SHOE ASM Rear Brake 5 017 43 LEVER Parking Brake Shoe 5 149 44 STRUT ASM Parking Brake Shoe Lever 5 150 I 45 CASE Differential w Internal Gears GEO 5 5I0 46 SPACER Side Bearing 5 537 I GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 1OA 9 78 5 5 000 GROUP
